Telephone System Overview
Telephone System Overview

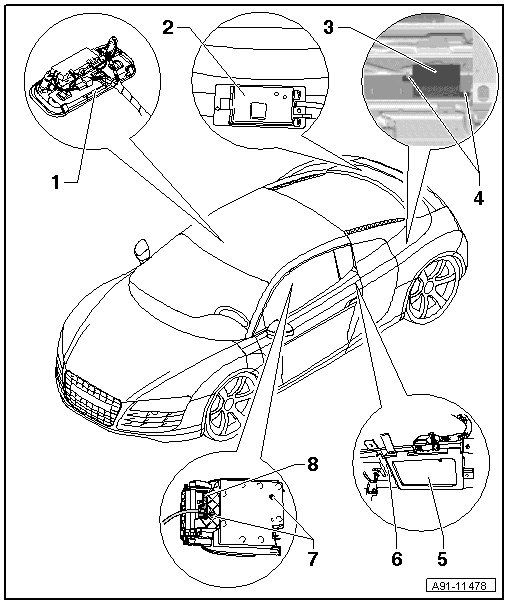

1 Front Interior Lamp (W1) with telephone microphone (R38)
2 Radio/Telephone Antenna (R51) (GSM)
3 Seat Belt Microphone Control Module (J886)
4 Nut
• 9 Nm.
5 Telephone Transceiver (R36)
6 Nut
• 9 Nm.
7 Telephone Base Plate (R126)
8 Screw
• 2 Nm.
