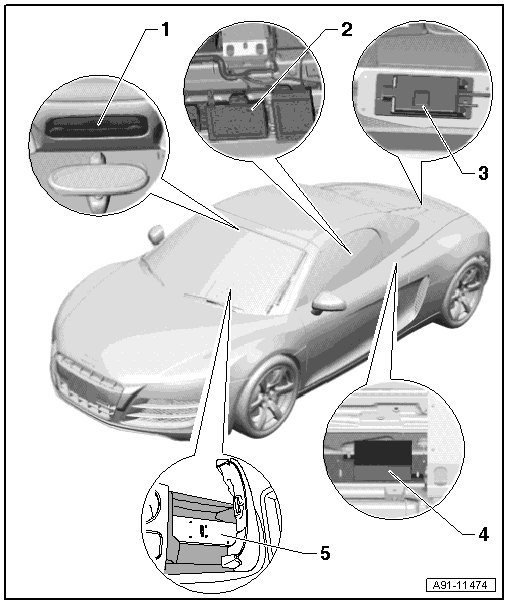

Telephone System Component Overview

Telephone System Component Overview





1 Telephone Microphone (R38)

• Inside the Microphone Unit (In Front Roof Module) (R164).

• Overview, refer to => [ Front Roof Module Microphone Unit Overview ] Sound Systems Overview.

• Removing and installing, refer to => [ Microphone Unit in Front Roof Module ] Telephone Systems.

2 Telephone Transceiver (R36)

• Under the rear shelf on the left side (Coupe).

• Behind the rear panel on the left side (Spyder).

• Connectors, cellular telephone preparation, refer to => [ Cellular Phone Preparation Multi-Pin Connector Assignments ].

• Connector Assignment, Bluetooth Hands-Free Calling, refer to => [ Bluetooth Hands-Free Calling Multi-Pin Connector Assignments ].

• Removing and installing, refer to => [ Telephone Transceiver ] Telephone Systems.

3 Radio/Telephone Antenna (R51)

• On the rear lid.

• Overview, refer to => [ Antenna Systems Component Overview ] Antennas Overview.

4 Seat Belt Microphone Control Module (J886) (Spyder)

• Behind left rear bulkhead.

• Overview, refer to => [ Seat Belt Microphones Layout ]. Seat Belt Microphones Layout

• Connectors, refer to => [ Seat Belt Microphone Control Module, Multi-Pin Connector Assignments ].

• Removing and installing, refer to => [ Seat Belt Microphone Control Module ] Telephone Systems.

5 Telephone Base Plate (R126)

• In center console.

• Removing and installing, refer to => [ Telephone Baseplate ] Telephone Systems.
