Fuses In Fuse Holder -SC-, Instrument Panel

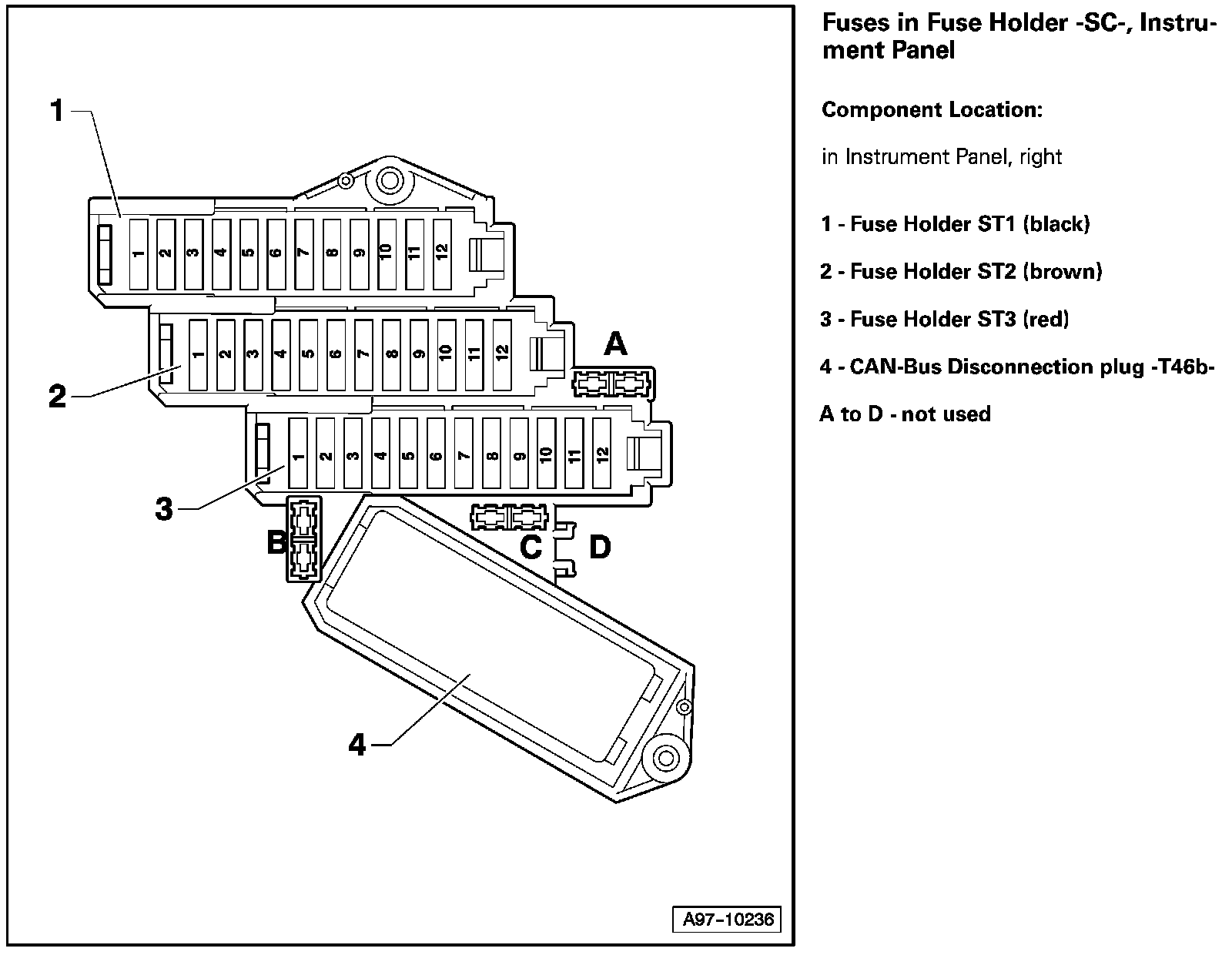

Fuses in Fuse Holder SC, Instrument Panel:

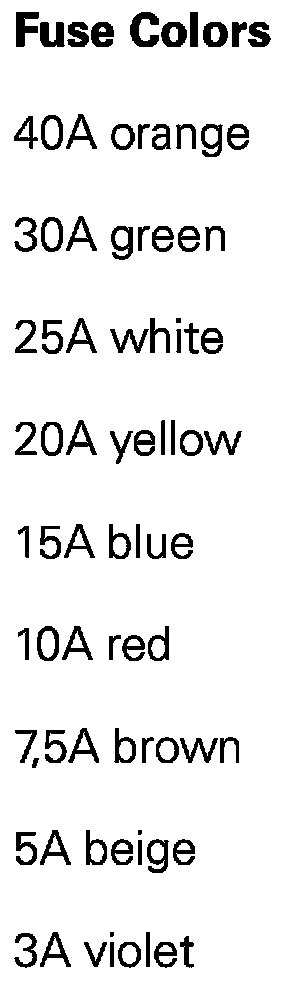

Fuse Colors:

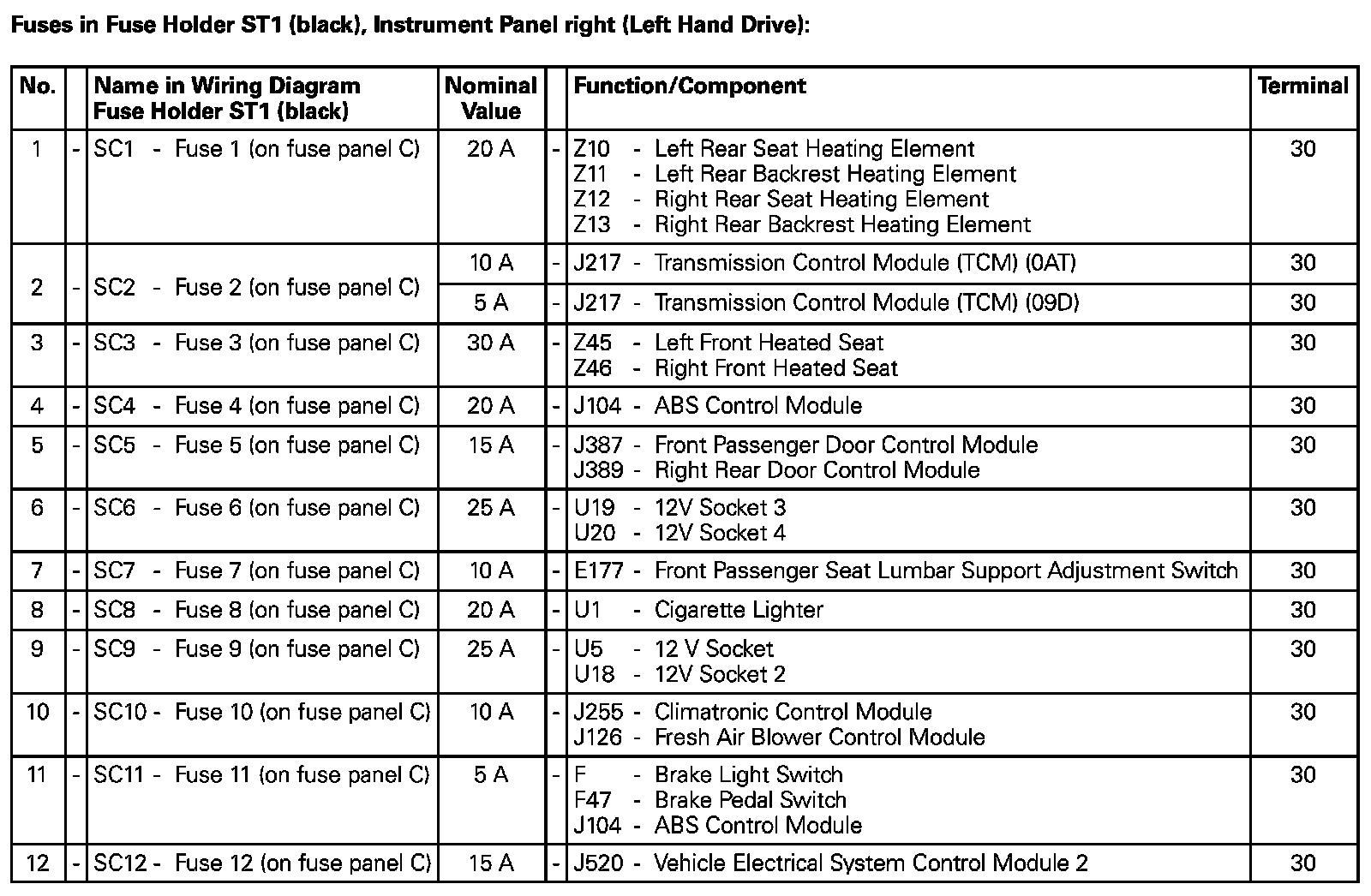

Fuses In Fuse Holder ST1 (Black), Instrument Panel Right:

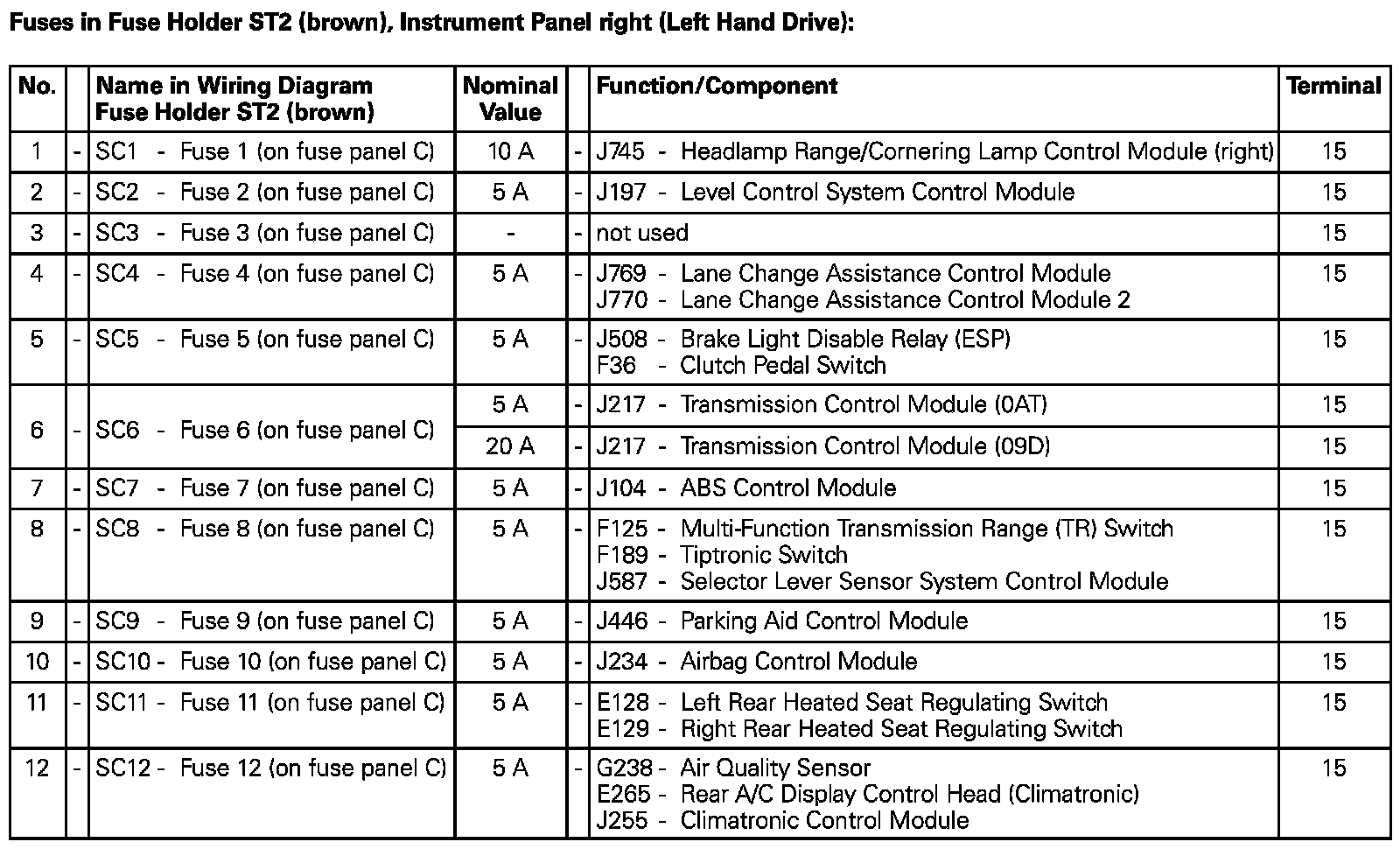

Fuses In Fuse Holder ST2 (Brown), Instrument Panel Right:

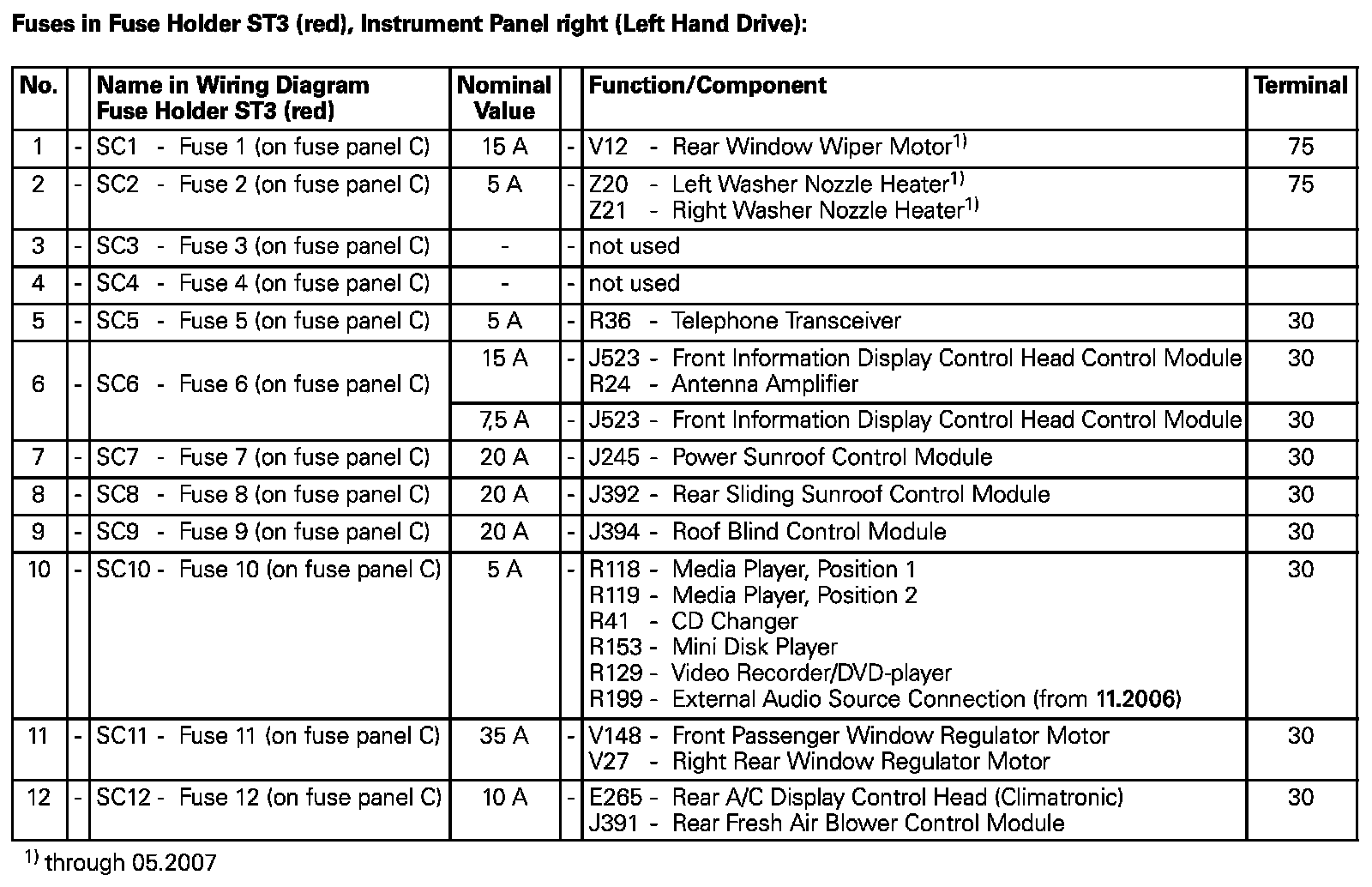

Fuses In Fuse Holder ST3 (Red), Instrument Panel Right:
