Window Track: Service and Repair

Window Shaft Strips

=> [ Front Door Window Shaft Strip ]

=> [ Rear Door Window Shaft Strip ]

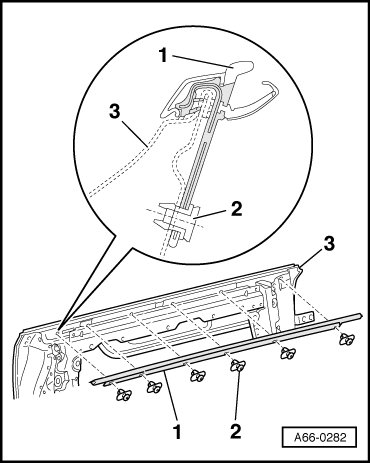

Front Door Window Shaft Strip

- Remove door trim

- Remove assembly carrier and window frame => [ Assembly Carrier ] Assembly Carrier.

- Remove clips - 2 -.





- Remove window shaft strip - 1 -.

- Installation is performed in the reverse order of removal.

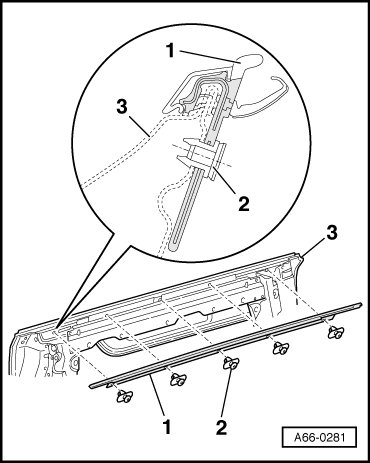

Rear Door Window Shaft Strip

- Remove door trim

- Remove window frame and window regulator => [ Window Frame and Window Regulator ] Window Frame and Window Regulator.

- Remove clips - 2 -.





- Remove window shaft strip - 1 -.

- Installation is performed in the reverse order of removal.
