Rear Reading Lamp Bulb, from 09.07

Rear Reading Lamp Bulb, from 09.07

Removing





- Remove rear interior/reading light. Refer to=> [ Rear Interior/Reading lamps with Rear Roof Module Control Head, from
09.07 ] Rear Interior/Reading lamps with Rear Roof Module Control Head, from 09.07.

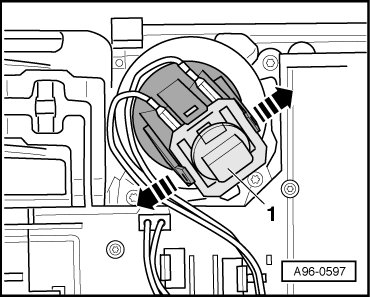

- Release retainer tabs - arrows -and swivel lamp socket out of mount.

- Remove the glass socket lamp (12V, 6 W) from the clamping socket.

Installing

Install in reverse order of removal, observing the following:

- Install rear interior/reading light. Refer to=> [ Rear Interior/Reading lamps with Rear Roof Module Control Head, from
09.07 ] Rear Interior/Reading lamps with Rear Roof Module Control Head, from 09.07.
