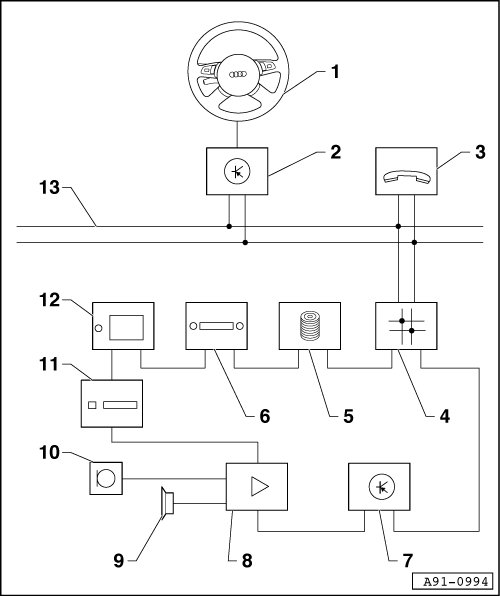

1 Multifunction Steering Wheel

• With Multi-function Steering Wheel Control Module (J453) under right button.

• Removing and installing multi-function buttons, refer to => [ Multi-Function Buttons ] Multi-Function Steering Wheel.

• Removing and installing Tiptronic switch, refer to => [ Tiptronic Switch ] Multi-Function Steering Wheel.

• Steering Wheel Heating Button (E522), Removing and Installing, refer to => [ Steering Wheel Heating Button ] Multi-Function Steering Wheel.

2 Steering Column Electronic Systems Control Module (J527)

• On steering column at steering column switches.

3 Telephone/Telematics Control Module (J526)

• In front of left front seat under floor covering.

4 Data Bus OBED Interface (J533)

• Behind glove compartment.

5 Media Player, Position 1 (R118)/Media Player, Position 2 (R119)

• Inside the glove compartment.

6 Radio (R)

• Behind luggage compartment left side trim.

• With speech input control module.

7 Front Information Display Control Head Control Module (J523)

• Behind glove compartment.

8 Digital Sound System Control Module (J526)

• Behind luggage compartment left side trim.

9 Sound Systems

10 Microphone Unit (in Front Roof Module) (R164)

• Overview, refer to => [ Microphone Unit in Front Roof Module Overview ] Communication System.

11 Navigation System with CD Drive Control Module (J401)

• Behind luggage compartment left side trim.

12 TV Tuner (R78)

• Behind luggage compartment left side trim.

13 CAN Bus (Comfort)
