Fastener Tightening - Final Drive, Differential

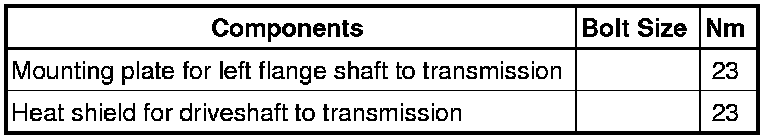

Fastener Tightening Specifications

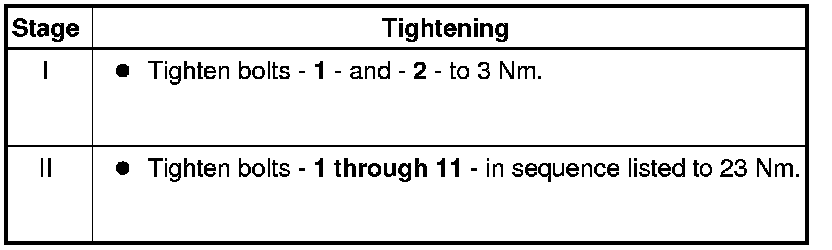

- Tighten final drive cover bolts as follows:









- Tighten self-locking center differential cover bolts as follows:
