PCV Valve Hose: Service and Repair

Crankcase Ventilation Hose

Removing

- Remove intake manifold.

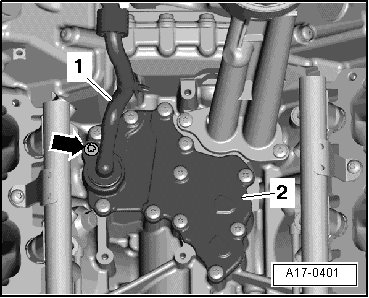

- Remove bolt - arrow - and remove crankcase ventilation hose - 1 - from cover - 2 -.





Installing

• Tightening specifications. Refer to => [ Oil Check Valve and Spray Nozzle Valve Assembly Overview ] Oil Check Valve and Spray Nozzle Valve Assembly Overview.

Installation is in reverse order of removal, note the following:

• Replace O-ring.

- Install intake manifold.
