Version 2

Secondary Air Injection Pump

Removing

- Remove front noise insulation by loosening fasteners - 1 -.





• Ignore items - 2, 3 and 4 -.

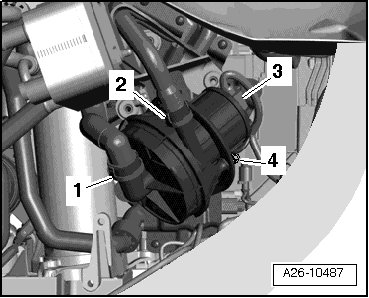

- Remove air guide hoses - 1 and 2 -.





- Separate electrical connector - 3 -.

- Remove 3 nuts - 4 - and remove secondary air injection (AIR) pump from bracket.

Installing

• Tightening specifications. Refer to => [ Secondary Air Injection System Assembly Overview ] Service and Repair.

Installation is in reverse order of removal.
