Version 2

Secondary Air Injection Left Combination Valve

Removing

- Pull rear engine cover off - arrows -.





- Drain coolant. Refer to => [ Cooling System, Draining and Filling ] Procedures.

- Remove left coolant pipe. Refer to => [ Left Coolant Pipe ] Left Coolant Pipe.

- Remove Heated Oxygen Sensor (HO2S) 2 (G108) (in front of catalytic converter).

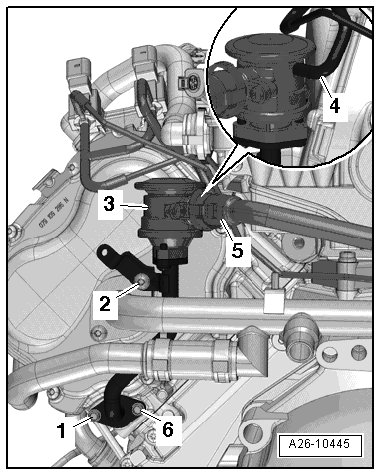

- Remove vacuum hose - 4 - from the secondary air injection (AIR) combination valve.





- Remove air guide hose - 5 - on secondary air injection (AIR) combi-valve by press release buttons.

- Remove bolts - 1, 2 and 6 -.

- Free up electrical wiring on secondary air injection (AIR) combi-valve.

- Remove secondary air injection combination valve - 3 -.

• The engine is shown from behind to provide a better illustration.

Installing

• Tightening specifications. Refer to => [ Secondary Air Injection System Assembly Overview ] Service and Repair.

Installation is in reverse order of removal, note the following:

• Replace gaskets and O-rings.

• Secure all hose connections with hose clamps appropriate for the model.

• During installation, all cable ties must be re-installed at the same location.

- Install Heated Oxygen Sensor (HO2S) 2 (G108) (in front of catalytic converter).

- Install left coolant pipe. Refer to => [ Left Coolant Pipe ] Left Coolant Pipe.

- Fill with coolant => [ Filling ] Procedures.
