Front Reading Lamp Bulbs

Front Reading Lamp Bulbs

• Component location: On underside in interior mirror

Removing

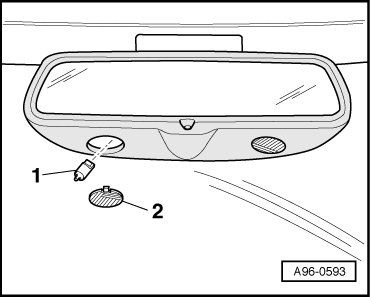

- Release retainer tab at lens - 2 - for reading light and unclip downwards.

- Wrap adhesive tape around tip of flat-nose pliers and pull glass base bulb - 1 - (12V, 5 W) from socket.

Installing

Install in reverse order of removal, observing the following:

- Insert lens for reading light and press on until it engages.
