Intake Manifold: Specifications

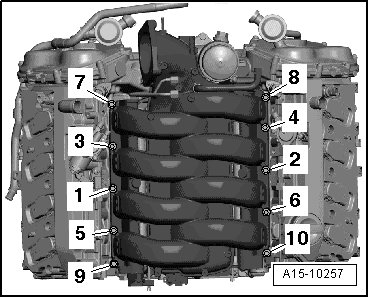

Magnesium Intake Manifold





First pass 8 Nm
Second pass 9 Nm
Final pass Tighten 90°

Plastic Intake Manifold

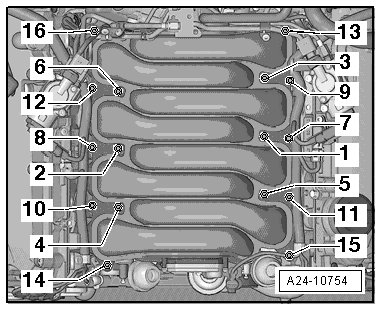

Upper Manifold





First pass 8 Nm
Final pass 11 Nm

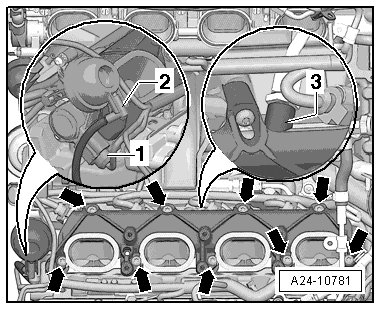

Lower Manifold 10 Nm diagonally and in steps
