Power Take-Off Seals, Replacing

Power Take-off Seals, Replacing

Special tools, testers and auxiliary items required

• Seal Remover (T40195)

• Pressure Piece (T40192)

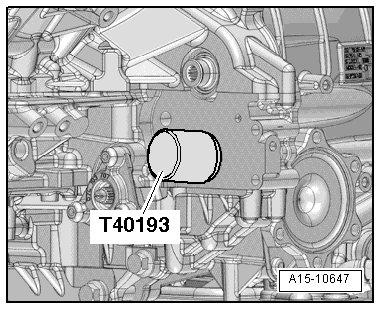

• Pressure Piece (T40193)

Procedure

- Remove air conditioning compressor.

- Remove power steering pump.

- Remove hose clamp at dust cap - arrow -.





- Remove dust cap together with A/C compressor input shaft from shaft end of A/C compressor drive spur gear.

- Rotate the spindle on the Seal Puller (T40195) all the way back.





- Lubricate the seal remover threaded head, position it, and install it in the shaft seal for the A/C compressor drive and power steering pump drive as far as possible using strong force.

- Rotate the inner section of the seal puller against the spur gear unit until the shaft seal is removed.

• If the shaft seal breaks, position the seal puller a second time and remove the rest of the seal.

- Clamp the seal puller in a vise at the hex bolt and remove the shaft seal with pliers.

- Clean running and sealing surface.

- Drive the A/C compressor drive shaft seal in as far as the stop using the Thrust Piece (T40192).





- Drive the power steering pump drive shaft seal in as far as the stop using the Thrust Piece (T40192).





The rest of installation is in reverse order of removal, note the following:

- Install power steering pump.

• Secure the dust cap with a hose clamp appropriate to model.





- Slide dust seal cap - arrow - with hose clamp already installed onto shaft end of A/C compressor drive spur gear.

- Install A/C compressor.
