Power Take-Off Assembly Overview

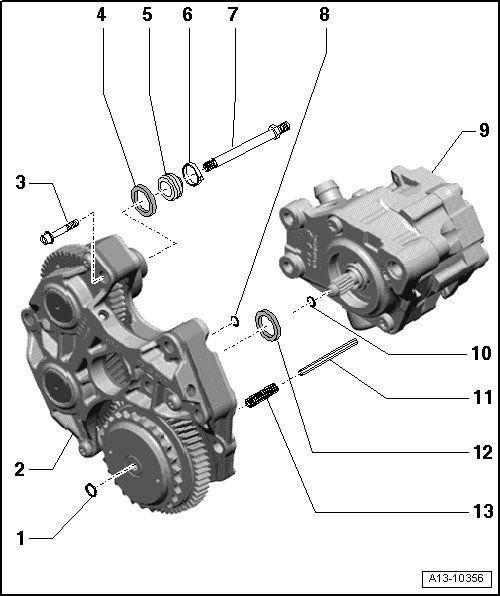

Power Take-Off Assembly Overview





1 Circlip

2 Spur gear unit

• Do not disassemble

• Removing and installing, refer to => [ Spur Gear Unit ] Spur Gear Unit

• With semi-circular seal in the power steering pump motor

• Semi-circular seal installation location => [ Semi-circular seal installation location ]

3 Bolt

• 22 Nm

4 A/C compressor driveshaft seal

• Replacing, refer to => [ Power Take-off Seals, Replacing ] Service and Repair.

5 Dust seal cap for A/C compressor drive

6 Clamp

7 Driveshaft for A/C compressor

• 60 Nm

8 O-ring

• Replace

9 Power-steering pump

10 O-ring

• Replace

11 Driveshaft for oil pump

12 Power steering pump driveshaft seal

• Replacing, refer to => [ Power Take-off Seals, Replacing ] Service and Repair.

13 Spring

Semi-circular seal installation location





• In the power steering pump motor - arrow -.
