Ceramic CSIC

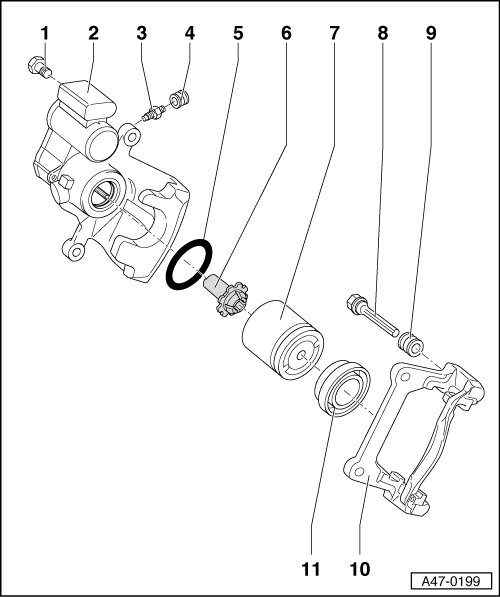

Brake Caliper, Servicing

• When servicing, completely install repair kit.

• Apply thin coat of assembly paste to brake cylinders, pistons and seals.





1 - Self-locking bolt

• Torque specification, 35 Nm

• Always replace

• When loosening and tightening, counter-hold at guide pin

2 - Brake caliper housing with actuator

• Brake caliper is not designed to be disconnected from actuator

• Pre-bleed caliper housing after repairing => [ Brake System Bleeding ] Brake System, Bleeding

3 - Bleeder screw

4 - Dust cap

• Push onto bleed valve

5 - Sealing ring

• Removing and installing => [ Brake Caliper Piston ] Brake Caliper Piston

6 - Pressure nut

• To operate parking brake

7 - Pistons

• Removing and installing => [ Brake Caliper Piston ] Brake Caliper Piston

8 - Guide pins

• Grease before pulling on protective cap

9 - Protective cap

• Pull onto brake carrier and guide pin

10 - Brake carrier with guide pins and protective cap

• Supplied as pre-assembled replacement part with sufficient grease on guide pins

• If protective caps or guide pins are damaged, install repair kit. Use supplied grease packet to lubricate guide pins.

11 - Protective cap

• Removing and installing => [ Brake Caliper Piston ] Brake Caliper Piston

• Pull onto piston with outer sealing lip
