Front/Center Console Control Head






Communication System

Front/Center Console Control Head

CAUTION!
• This section refers to components of the communication systems available in Europe and not all apply to communication systems used in USA and Canada.

CAUTION!
• Switch off all electrical components.

• Switch off ignition and remove ignition key.

Removing

- Open glove box.

- Remove decorative panel with right switch strip.

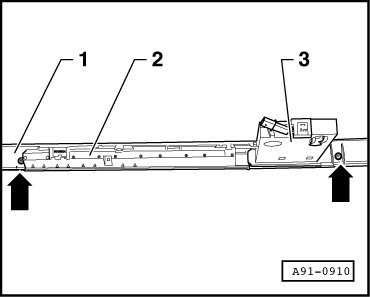

- Remove bolts - arrows - (1 Nm) on rear side.





- Remove Front/Center Console Control Head (E461) - 2 - from panel - 1 -.

Installing

- Install in reverse order.
