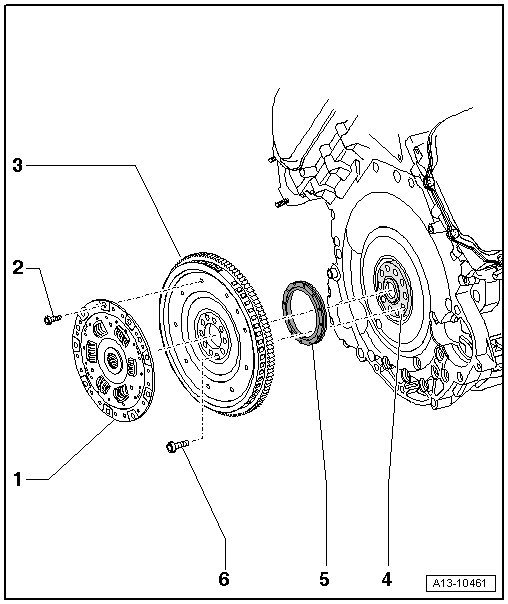

Flywheel Component Overview

Flywheel Component Overview





1 Damper unit

• Removing and installing, refer to => [ Damper Unit ] Damper Unit

2 22 Nm

• Tighten in a diagonal sequence.

3 Flywheel

• Removing and installing, refer to => [ Flywheel ] Flywheel

4 Crankshaft

5 Shaft seal for crankshaft -timing chain side-

• Replacing, refer to => [ Crankshaft Seal, Timing Chain Side, Replacing ] Crankshaft Seal, Timing Chain Side, Replacing.

6 60 Nm plus an additional 90° (1/4 turn)

• Replace
