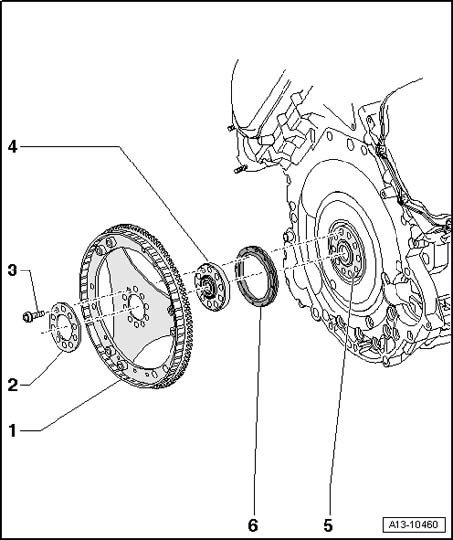

Drive Plate, Component Overview
Drive Plate, Component Overview
1 - Drive plate
2 - Backing plate
3 - 60 Nm plus an additional 90 degree (1/4 turn)
^ Replace
4 - Centering washer
^ Installed location
5 - Crankshaft
6 - Shaft seal for crankshaft -timing chain side-
