Drive Plate Component Overview

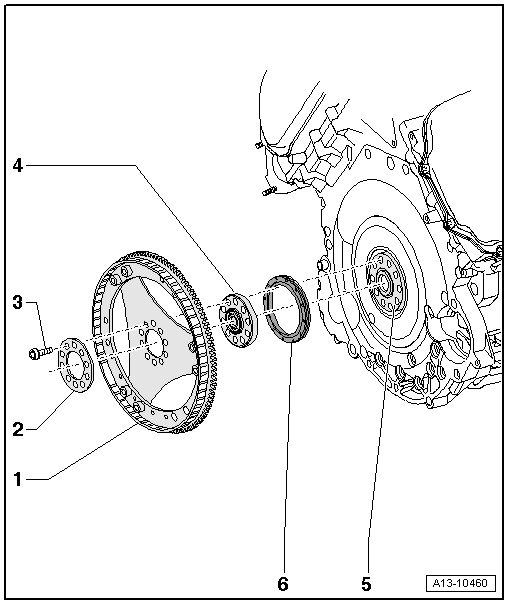

Drive Plate Component Overview





1 Drive plate

• Removing and installing, refer to => [ Drive Plate ] Drive Plate

2 Backing plate

3 60 Nm plus an additional 90° (1/4 turn)

• Replace

4 Centering washer

• Installed location => [ Install drive plate with centering washer and backing plate ] Drive Plate

5 Crankshaft

6 Shaft seal for crankshaft -timing chain side-

• Replacing, refer to => [ Crankshaft Seal, Timing Chain Side, Replacing ] Crankshaft Seal, Timing Chain Side, Replacing.
