Coolant Line/Hose: Locations

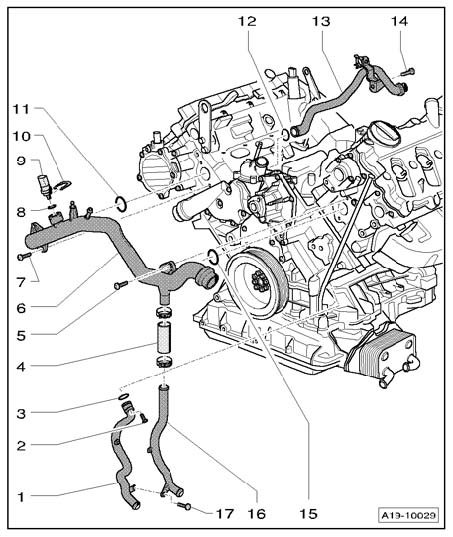

Coolant Pipes, Component Overview





1 - Left coolant line

2 - 9 Nm

3 - O-ring

^ Replace

4 - Connecting hose

5 - 9 Nm

6 - Front coolant line

7 - 9 Nm

8 - O-ring

^ Replace

9 - Engine Coolant Temperature (ECT) Sensor G62

10 - Retaining clip

11 - Seal

^ Replace

12 - O-ring

^ Replace

13 - Upper coolant line

14 - 9 Nm

15 - Seal

^ Replace

16 - Left coolant line

17 - 9 Nm
