Balance Shaft: Locations

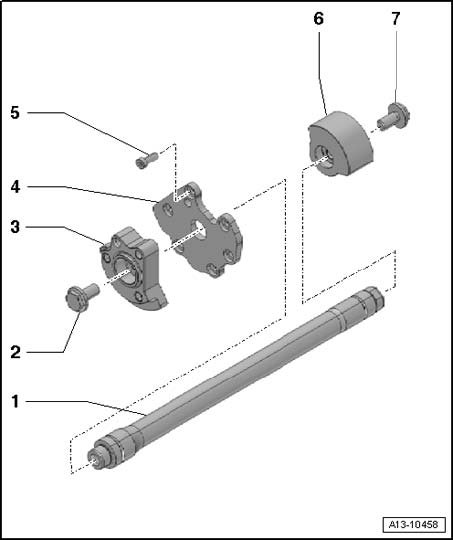

Balance Shaft, Component Overview





1 - Differential shaft

^ To loosen and fasten, use 8 mm dia. drill bit as counter-holder

3 - Balance weight (timing chain side)

^ Can only be positioned one way on balance shaft

4 - Bearing end bracket

5 - 13 Nm

6 - Balance weight (belt pulley side)

^ Can only be positioned one way on balance shaft

7 - 60 Nm

^ To loosen and fasten, use 8 mm dia. drill bit as counter-holder
