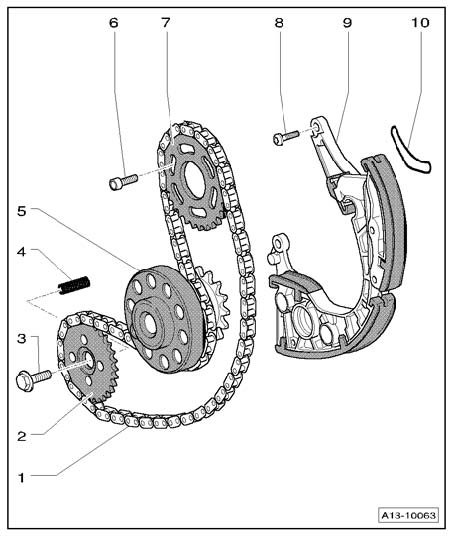

Power Take-Off Drive Chain, Through 04.06, Component Overview

Power Take-Off Drive Chain, through 04.06, Component Overview





1 - Power take-off drive chain

^ Before removing, mark direction of rotation with paint

2 - Drive sprocket for oil pump

^ Installation position: Labeled side faces engine

3 - 30 Nm plus an additional 90 degree (1/4 turn)

^ Replace

4 - Spring

5 - Crankshaft

6 - 15 Nm plus an additional 90 degree (1/4 turn)

^ Replace

7 - Chain sprocket for balance shaft

^ Installation position: Labeled side faces transmission

8 - 6 Nm plus an additional 45 degree (1/8 turn)

^ Replace

9 - Chain tensioner

^ With glide track

10 - Gasket

^ Depending on version
^ Replace
