Power Take-Off Drive Chain, From 05.06, Component Overview

Power Take-Off Drive Chain, from 05.06, Component Overview

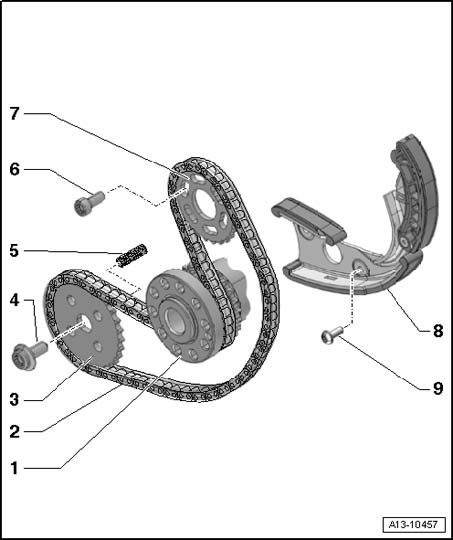

1 - Crankshaft

2 - Power take-off drive chain

^ Before removing, mark the direction of rotation with paint

3 - Drive sprocket for oil pump

^ Installation position: Labeled side faces engine

4 - 30 Nm plus an additional 90 degree (1/4 turn)

^ Replace

5 - Spring

6 - 15 Nm plus an additional 90 degree (1/4 turn)

^ Replace

7 - Balance shaft chain sprocket

^ Installation position: Labeled side faces transmission

8 - Chain tensioner

^ With glide track

9 - 10 Nm plus an additional 45 degree (1/8 turn)

^ Replace
