Procedures

Creating Armrest Cutout

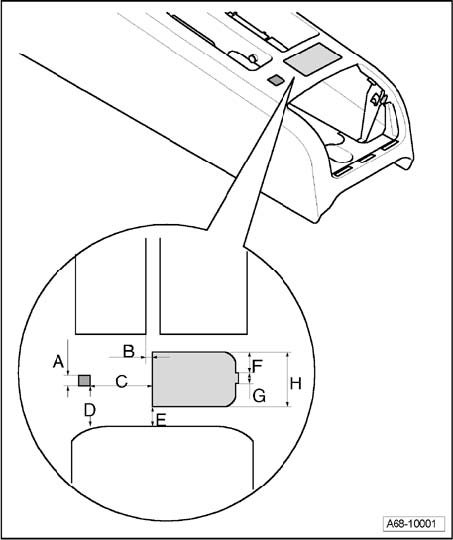

To create cutout for armrest, center armrest must be cut out as depicted in illustration.
Broken line at dimension - B - as guide.

The cutout is 64 mm long.







A - 9 mm
B - 5 mm
C - 39 mm
D - 31 mm
E - 15 mm
F - 16 mm
G - 9 mm
H - 43 mm
