Seat Height Adjustment Motors, Assembly Overview

Seat Height Adjustment Motors, Assembly Overview

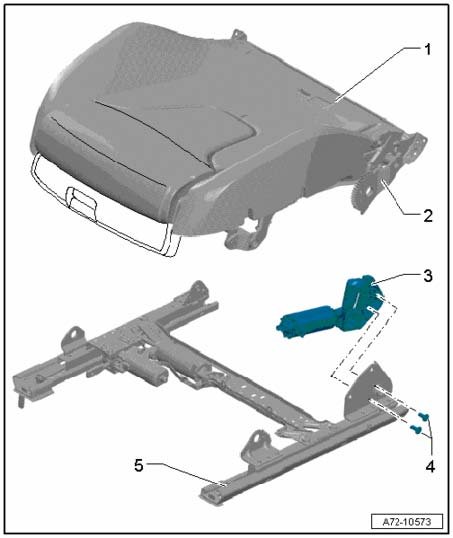

1 - Seat pan upper frame
- With cover and upholstery
- Removing and installing

2 - Toothed segment
- Plastic toothed segment
- Removing and installing
- Clipped to fitting

3 - Drivers Seat Height Adjustment Motor V245 or Front Passenger's Seat Height Adjustment Motor V246
- Removing and installing

4 - Screw, self-locking
- 31 Nm
- Qty. 2
- Replace
- Threaded holes for screws must always be cleaned (for example, with thread cutter)

5 - Seat pan lower frame
- Removing and installing
