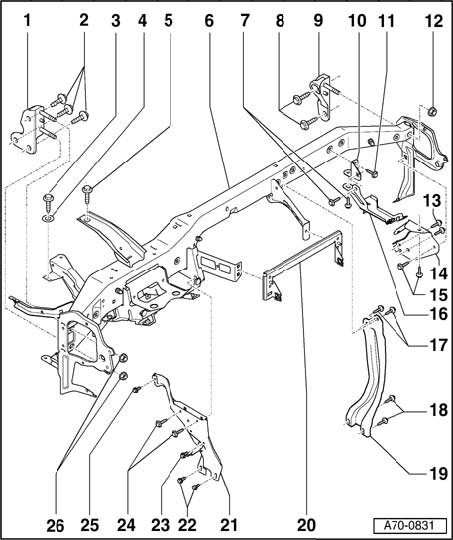

Central Tube, Component Locations

Central Tube, Component Locations







1 - Angle bracket
2 - Bolts (3x)
- Tightening torque 23 Nm

3 - Screw
- Tightening torque 6 Nm

4 - Sealing washer
5 - Screw
- Tightening torque 6 Nm

6 - Central tube
7 - Screws, (2x)
- Tightening torque 9 Nm

8 - Screws, (2x)
- Tightening torque 23 Nm

9 - Angle bracket
10 - Angle bracket
11 - Screw
- Tightening torque 9 Nm

12 - Nut
- Tightening torque 35 Nm

13 - Screws, (2x)
- Tightening torque 8 Nm

14 - Angle bracket
- For air conditioning unit

15 - Screws, (2x)
- Tightening torque 9 Nm

16 - Supports
17 - Screws, (2x)
- Tightening torque 9 Nm

18 - Screws, (2x)
- Tightening torque 9 Nm

19 - Supports
20 - Reinforcing bracket
21 - Supports
22 - Screws, (2x)
- Tightening torque 9 Nm

23 - Screw
- Tightening torque 8 Nm

24 - Screws, (2x)
- Tightening torque 9 Nm

25 - Screw
- Tightening torque 8 Nm

26 - Nut
- Tightening torque 35 Nm
