Center Armrest Support Bracket, Removing and Installing

Center Armrest Support Bracket, Removing and Installing

Special tools, testers and auxiliary items required







- Torque wrench V.A.G 1331

Removing

- Remove center armrest. Center Armrest, Removing and Installing
- Remove center console:
- Center console, removing and installing - USA and Canadian vehicles up to 10.04.
- Center console, removing and installing - USA and Canadian vehicles from 11.04.

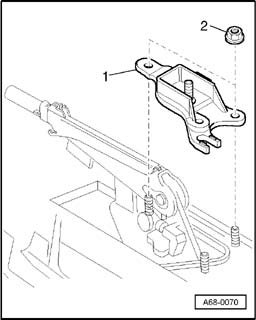

- Remove nut - 2 - (2x).
- Tightening torque: 10 Nm.
- Remove support foot - 1 -.

Installing

- Installation is reverse of removal.
