Trim, Sedan

Rear Panel Trim, Removing and Installing

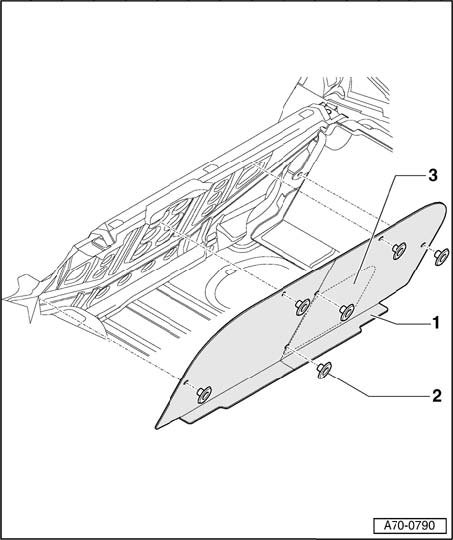

1 - Rear bulkhead trim panel

Removal:
- If installed, remove ski sack.
- Remove luggage compartment floor covering.
- Remove clips - 2 - (5x in version with ski sack, 6x in version without ski sack).
- Remove rear panel trim - 1 -.

Installing:
- Installation is reverse of removal.

2 - Clips (Qty. 5 or 6)
3 - Ski bag (optional)
