Telephone Transceiver, Fixed Installation, Removing And Installing

Telephone Transceiver, Fixed Installation, Removing and Installing

- Turn off all electrical components.
- Remove ignition key.

Removing
- Remove right A-pillar trim.
- Remove right front seat.

NOTE: Safety belt on seat frame must not be loosened.

- Fold back the floor mat.

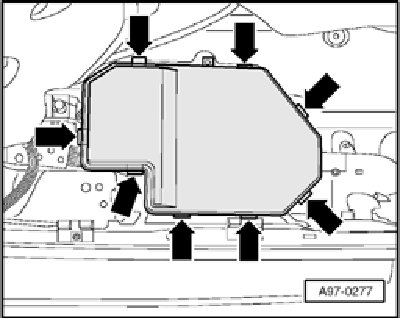

- Release electronics box cover - arrows - and remove it.

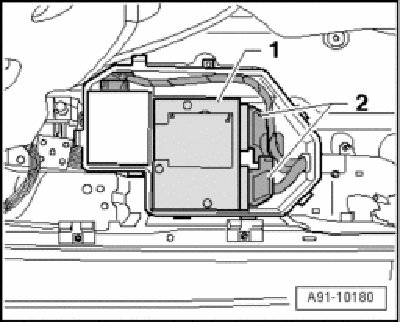

- Disconnect connectors - 2 - on Telephone/Telematics Control Module J526 - 1 -.
- Remove Telephone/Telematics Control Module J526 - 1 - from electronics box.

Installing
- Install in reverse order.
- Perform adaptations and coding on Telephone/Telematics Control Module J526 if necessary.
