Radio Systems

Microphone, Removing And Installing

Special tools, testers and auxiliary items required

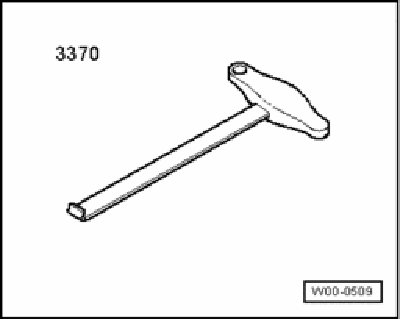

- Special hook 3370

Removing

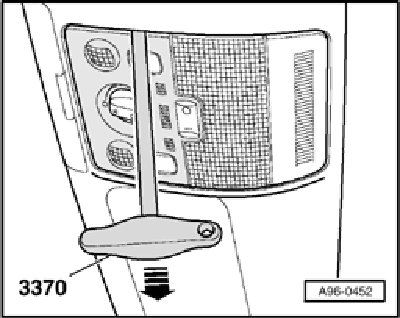

- Carefully remove cover on Front Interior Light W1 with Special Hook 3370

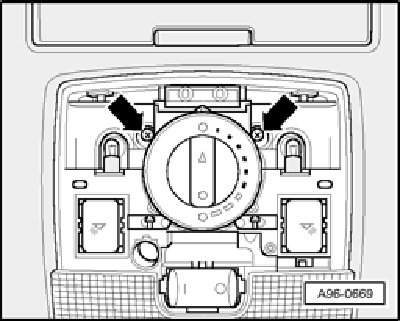

- Remove bolts - arrows - (3 Nm).
- Tip Front Interior Light W1 downward and out.

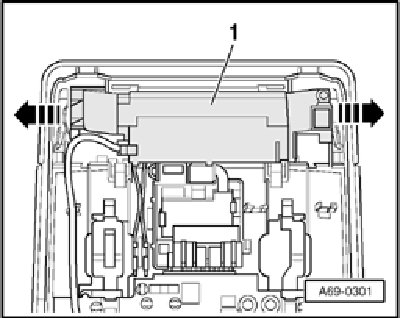

- If present, release retaining clips - arrows - and remove Radar Interior Monitoring Control Module 1 G303 - 1 - from Front Interior Light W1.

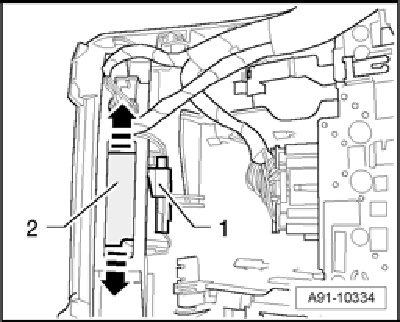

- Disconnect connector - 1 - on Inside Microphone R74 - 2 -.
- Release retaining hooks - arrows - and remove Inside Microphone R74 - 2 -.

Installing
- Install in reverse order.
