RNS-E Navigation System

Microphone, Removing And Installing

Special tools, testers and auxiliary items required

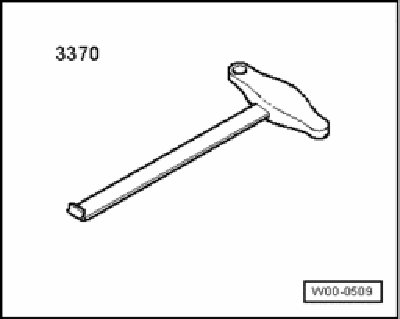

- Special hook 3370

- Turn off all electrical components.
- Remove ignition key.

Removing

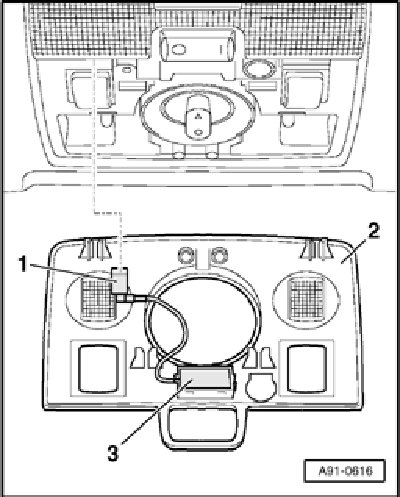

- Carefully remove cover from Front Interior Light W1 in - direction of arrow - using Special Hook 3370.







- Disconnect connector - 1 - on Telephone Microphone R38.
- Unclip Telephone Microphone R38 - 3 - from bracket in cover - 2 -.

Installing
- Install in reverse order.
