Transmission, 3.2L FSI
Transmission, 3.2L FSI
Special tools, testers and auxiliary items required
• Engine support bridge (10-222 A)
• Bracket (30-211 A)
• Transmission support (3282)
• Adjustment plate (3282/48)
• Pin (3282/50)
• Engine/transmission jack (V.A.G 1383 A )
• Used oil collection and extraction device (V.A.G 1782)
• Fender insert pads (T40045)
• Adapter (T40058)
• M10x20 bolt
Removing
• General repair notes. Refer to => [ General Repair Information ] General Repair Information.
• Rules of cleanliness for working on automatic transmissions. Refer to => [ Clean Working Conditions ] Clean Working Conditions.
• All cable ties that are opened or cut open during removal must be replaced in the same positions during installation.
- Place selector lever in position "N".
CAUTION!
Observe procedures for disconnecting battery.
- With ignition switched off, disconnect Battery Ground (GND) cable - arrow -.
- Remove left and right front exhaust pipe with catalytic converter.
• After removing the front exhaust pipe, loosen the rear subframe and remove the left transmission support.
• The engine/transmission jack (V.A.G 1383 A) supports the transmission on the housing supports - arrow -.
- Raise transmission slightly using Engine/Transmission Jack (V.A.G 1383 A).
- Install bolts - 1 - and - 4 - by hand.
• Ignore - 2 - and - 3 -.
- Lower transmission and pull the engine/transmission jack (V.A.G 1383 A) out from under the vehicle.
- Remove heat shield - A - for driveshaft - arrows -.
- Remove bolts at transmission/driveshaft flange.
- Push driveshaft toward rear final drive. CV joints can be moved axially.
- Place the driveshaft to the right on the exhaust system.
• Mark the installation position of the selector lever cable mounting bracket.
- Press selector lever cable ball joint - 1 - off from selector shaft lever.
- Remove mounting bracket on the transmission - arrows -.
• Take care not to bend or kink selector lever cable.
- Remove noise insulation bracket - arrows -.
• Observe cleanliness rules when working on automatic transmissions. Refer to => [ Clean Working Conditions ] Clean Working Conditions.
- Place used oil collection and extraction device ( V.A.G 1782) under the engine.
- Loosen union nuts - 3 - and disconnect the ATF lines.
- Remove ATF line bracket - 2 -.
• Disregard - 1 -.
- Remove ATF line bracket - arrow - on lower part of transmission.
• Place a cloth under ATF line to collect to escaping ATF.
- Remove bolt - arrow -.
- Remove ATF lines from transmission.
- Disconnect engine speed sensor (G28) connector - arrow -.
- Separate electrical connections on transmission, thereby pivoting the screw connections counter-clockwise - arrow -.
CAUTION!
See if the subframe is mounted hand-tight to the rear mounting points.
- Loosen bolts - arrows - at torque support stop approximately two rotations each.
- Remove lower nuts - A - on the left and right engine mounts until the lower edge of the threaded pin is flush.
- Remove front engine cover - arrows -.
- Pull off sealing rubber at bolted flanges of fender.
- To prevent damage to bolted flanges of fender when using engine support bridge (10-222 A), insert fender insert pads (T40045) on both sides between bolted flange of fender and web plate lying beneath.
- Position engine support bridge (10-222 A) with adapters (10-222 A/3) on to bolted flanges of fender.
- Engage spindles onto engine lifting eyes as shown.
- Pretension the engine by the spindles until the engine/transmission bolts underneath are accessible.
- Remove left and right stabilizer mounts - 1 - and - 2 -.
- Swing stabilizer downward.
- Remove lower engine/transmission bolts - arrows -.
- Remove electrical wires - 2 - and - 3 - on starter.
- Remove bolts - 1 - and - 4 - and remove starter.
- Remove starter to the rear above the right wheel housing.
- Insert guide pins of the adapter (T40058) so that the large diameter - arrow 1 - faces toward the engine. The small diameter - arrow 2 - faces toward the adapter.
- To loosen the torque converter bolts, counterhold the crankshaft with adapter (T40058).
• Pay no attention to - arrow -.
- Remove 3 torque converter bolts - arrows - in opening of removed started (turn crankshaft 1/3 turn).
- Remove engine/transmission bolts - 4 through 6 -.
• The bolts - 3 - and - 7 - remain installed hand-tight.
- Mount transmission support (3282) on the Engine/Transmission Jack (V.A.G 1383 A).
- Place the adjustment plate (3282/48) on the transmission support (3282), as shown in the illustration.
- Align the arms of the transmission support to correspond with the holes in the adjustment plate.
- Attach support elements on adjustment plate, as illustrated.
- Make sure the bolt (3282/50) is installed on the right rear side.
- Place Engine/Transmission Jack (V.A.G 1383 A) with transmission support (3282) under transmission.
• The arrow symbol on the adjusting plate points in the direction of travel.
- Align adjustment plate in parallel with transmission.
- Secure mount to threaded hole at back left of transmission with an M10x20 bolt - arrow 1 -.
- Insert flattened Pin (3282/50) into mounting hole at right rear of transmission housing - arrow 2 -.
CAUTION!
• The flattened side of the pin must face toward transmission oil pan, so that it does not bend or become damaged.
• If the transmission oil pan is damaged, it must be replaced.
- Insert pin in left front mounting hole on transmission housing - arrow 2 -.
- Place pin in housing recess at right front of differential housing - arrow 1 -.
- Lift transmission slightly.
- Remove bolts - 2 - on the right transmission support and remove the heat shield - B -.
- Remove bolts - 1 -.
- Remove complete transmission support - A - and mount form the transmission.
- Remove the last engine/transmission bolts.
- Separate the transmission from the engine by prying the converter from the engine drive plate with a screwdriver.
- Carefully lower the transmission using Engine/Transmission Jack (V.A.G 1383 A).
• Pay attention to drive axle clearance when lowering.
- Secure torque converter in transmission against falling down using Bracket (30-211 A).
Installing
• All threaded bores, in which self-locking bolts are threaded, must be cleaned of locking fluid residue using a thread tap.
• When performing repairs, replace self-locking nuts and bolts.
• Replace O-rings.
• When installing, bring all cable ties back to same positions.
- Before installing transmission make sure the torque converter is correctly installed in the transmission:
• With torque converter installed correctly, the distance between contact surfaces on threaded holes on converter and torque converter bell housing contact surface is at least 19 mm.
CAUTION!
If the torque converter is not properly installed, the drive lugs on the torque converter and the ATF pump will be severely damaged when the transmission is attached to the engine.
- Before installing the transmission, make sure the alignment sleeves - A - are correctly positioned on the cylinder block, if necessary install.
- Reinstall intermediate plate between engine and transmission in same position.
- Before guiding together the engine and transmission, turn torque converter and engine drive plate so that one hole and one threaded hole are at the level of the removed starter opening.
- Make sure that no wires become pinched when connecting the engine and transmission.
Note the following when installing the transmission.
CAUTION!
Before and during fastening the bolts of the engine/transmission flange, check that the torque converter can still be turned behind the drive plate. If the torque converter cannot be turned, it must be assumed that it has not been installed properly and that the drive plate of the torque converter or the ATF pump will be destroyed during final tightening of the bolts.
- Install bolts - 3 - and - 7 - by hand.
- Install right transmission support and mount. Refer to => [ Left and Right Transmission Mount and Transmission Support ] Service and Repair.
- Insert guide pins of the adapter (T40058) so that the large diameter - arrow 1 - faces toward the engine. The small diameter - arrow 2 - faces toward the adapter.
- To tighten torque converter bolts, counterhold the crankshaft with adapter (T40058).
• Pay no attention to - arrow -.
- To secure torque converter to drive plate, use new ribbed bolts. Use original bolts only.
- Install 3 bolts - arrow - of the torque converter in the opening of the removed starter hand-tight at first (turn crankshaft 1/3 revolution further for each bolt).
- Fasten transmission to engine.

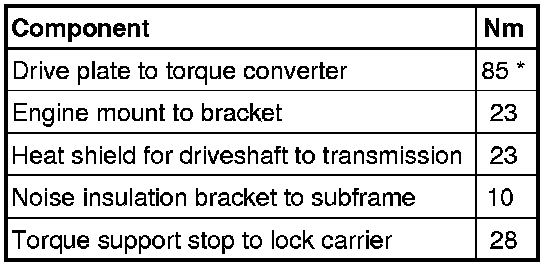

• Tightening specifications apply only to lightly greased, oiled, phosphated, or black-finished nuts and bolts.
• Additional lubricant such as engine or transmission oil may be used, but do not use graphite lubricant.
• Do not use degreased parts.
• Tolerance for torque specification ± 15%.

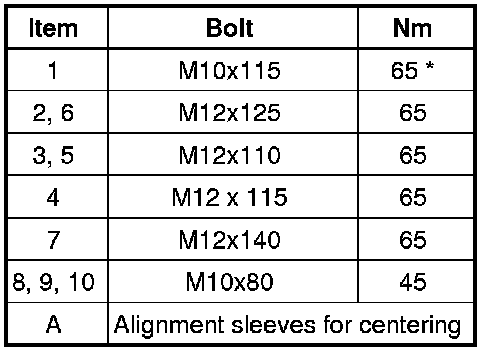

Securing engine/transmission
* Bolt strength rating 10.9.
Further installation in reverse order, paying attention to the following:
- Install starter.
- Install stabilizer bar.
- Clean ATF lines and cooler. Refer to => [ ATF Cooling Lines and Cooler, Cleaning ] 09LA Transmission.
- Secure ATF lines and transmission on engine. Refer to => [ ATF Cooling Lines ] ATF Cooling Lines
- Install selector lever cable. Refer to => [ Selector Leer Cable, 3.2L FSI ] Selector Lever Cable, 3.2L FSI.
- Adjust selector lever cable. Refer to => [ Selector Lever Cable, Checking and Adjusting ] Selector Lever Cable, Checking and Adjusting.
- Install driveshaft.
- Install front exhaust pipes.
- Align exhaust system so it is free of tension.
- Install drive axles.
- Allow stop for torque support to seat on torque support rubber buffer through its own weight and tighten bolts - arrows -.
- Observe procedures for connecting battery.
- Check ATF level. Refer to => [ ATF, Checking Level and Correcting ] ATF, Checking Level and Correcting.
* Replace bolts.
