Relay Box
>>
Application and ID
>>

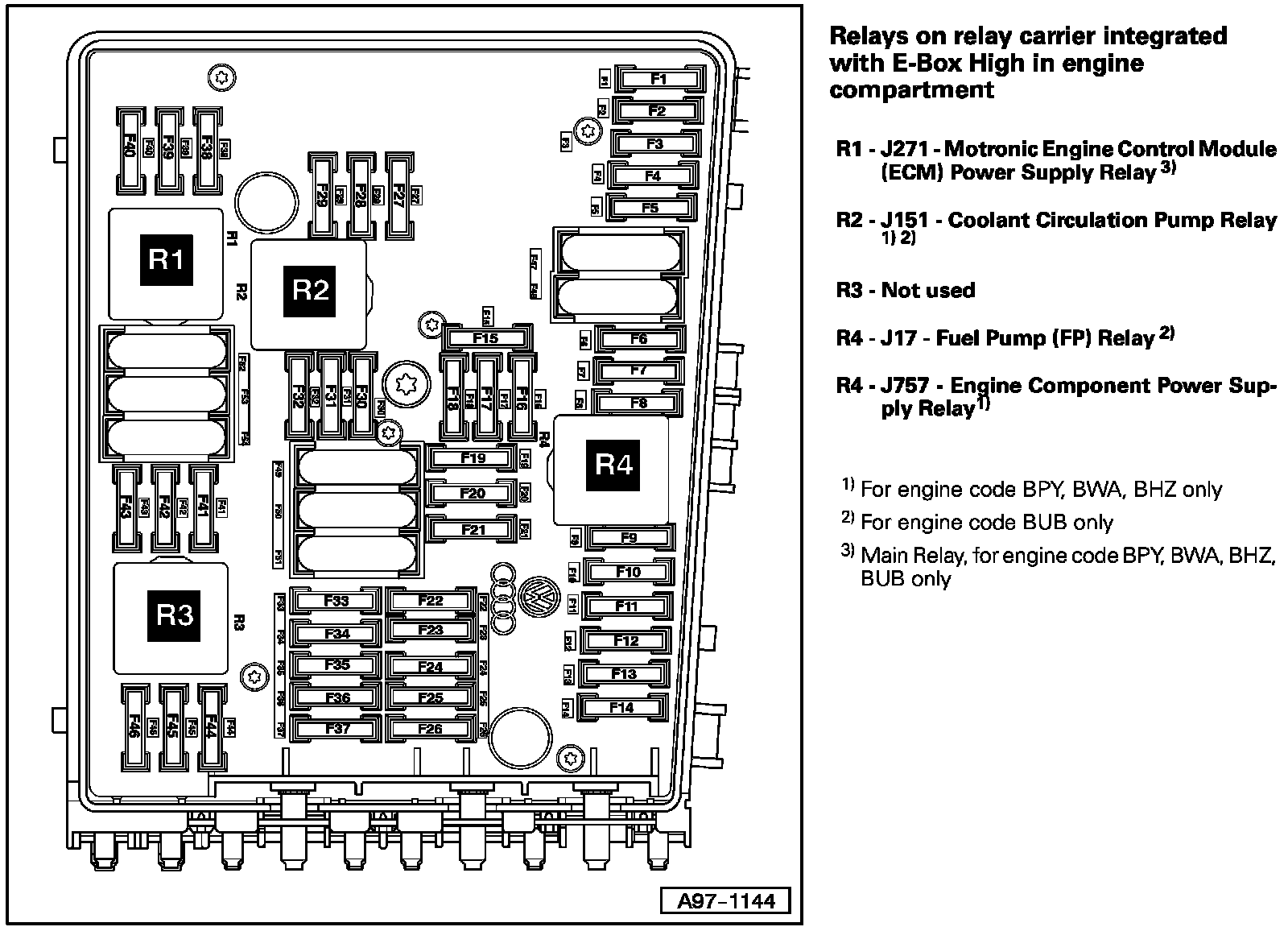

Relays on Relay Carrier Integrated With E-Box High In Engine Compartment
Relays on Relay Carrier Integrated With E-Box High In Engine Compartment
