ATF Cooling Lines, Component Overview

ATF cooling lines, component overview (vehicles with 4.2 ltr. MPI engine) - 09L, 6 Speed AWD A/T

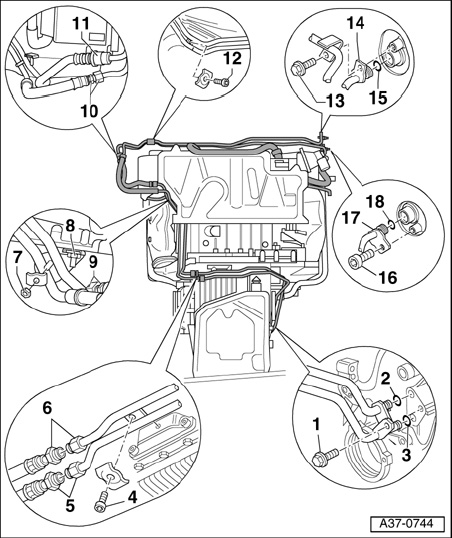

ATF Cooling Lines, Component Overview (Vehicles With 4.2 Ltr. MPI Engine):

1 - Bolt, 21 Nm
^ Before tightening bolt, push in line onto stop by hand
2 - O-ring
^ Replace
^ Lubricate with ATF when installing
3 - O-ring
^ Replace
^ Lubricate with ATF when installing
4 - Bolt - 5 Nm -
^ For securing ATF lines to transmission
5 - Union nut, 29 Nm
6 - Union nut, 29 Nm
7 - Nut, 5 Nm
^ For securing ATF lines to bracket
8 - Nut, 5 Nm
^ For securing bracket to transmission
9 - Union nut, 29 Nm
10 - Union nut, 29 Nm
11 - Plug connector
12 - Bolt, 5 Nm
^ For securing ATF lines at front end
13 - Bolt, 5 Nm
^ Before tightening bolt, push in line onto stop by hand
^ For securing ATF line to bracket at ATF cooler (bottom)
14 - ATF line
^ Inserted into ATF cooler (bottom)
^ Before tightening bolt, push in ATF line onto stop by hand
15 - O-ring
^ Replace
^ Lubricate with ATF when installing
16 - Bolt, 5 Nm
^ For securing ATF line at ATF cooler (top)
^ Before tightening bolt, push in line onto stop by hand
17 - ATF line
^ Inserted into ATF cooler (top)
^ Before tightening bolt, push in ATF line onto stop by hand
18 - O-ring
^ Replace
^ Lubricate with ATF when installing
