Intake Manifold on Vehicles With Fuel Return Line Component Overview

Intake Manifold on Vehicles with Fuel Return Line Component Overview

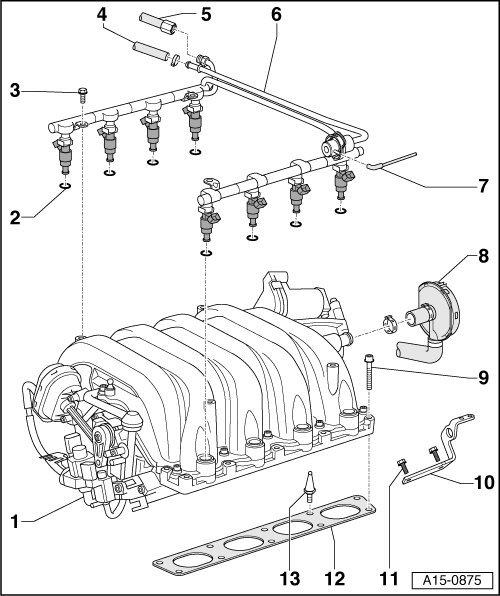

1 Intake manifold

• Removing and installing, refer to => [ Intake Manifold ] Intake Manifold

2 O-rings for fuel injectors

• Replace

3 10 Nm

4 Fuel return line

5 Fuel supply line

• Tighten union nut to 22 Nm

6 Fuel rail

7 Vacuum line

8 Crankcase housing ventilation pressure regulator valve

9 10 Nm

• Fasten in diagonal sequence in steps

10 Lifting eye

11 23 Nm

12 Gasket for intake manifold

• Replace

13 Crankshaft holder - 0.6 Nm
