Intake Manifold (Vehicles With Fuel Return Line), Component Overview

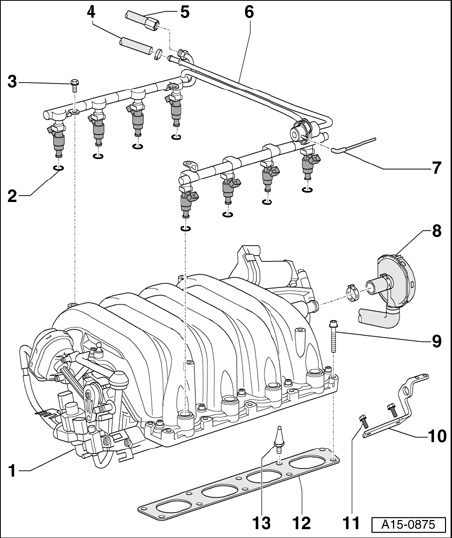

Intake manifold (vehicles with fuel return line), component overview





1 - Intake manifold
2 - O-rings for fuel injectors
^ Replace

3 - 10 Nm
4 - Fuel return line
5 - Fuel supply line
^ Tighten union nut to 22 Nm

6 - Fuel rail
7 - Vacuum line
8 - Crankcase housing ventilation pressure regulator valve
9 - 10 Nm
^ Fasten in diagonal sequence in steps

10 - Lifting eye
11 - 23 Nm
12 - Gasket for intake manifold
^ Replace

13 - Locking pin - 0.6 Nm
