Power Take-Off Seals, Replacing

Power take-off seals, replacing

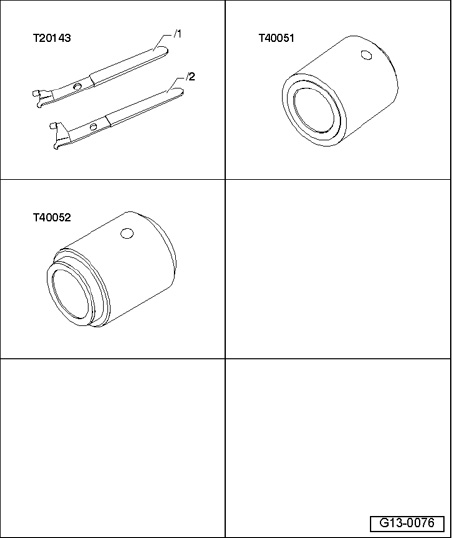

Special tools, testers and auxiliary items required





^ Pulling Hook T20143
^ Pressure piece T40051
^ Pressure piece T40052

Work procedure
- Remove air conditioning compressor.
- Remove power steering pump.





- Pry out sealing ring for A/C compressor drive using pulling hook T20143/1.





- Pry out power-steering pump drive seal using pulling hook T20143/1.





- Drive in sealing ring for A/C compressor drive using thrust piece T40051.





- Drive in sealing ring for power-steering pump drive using thrust piece T40052.

The rest of installation is in reverse order of removal, note the following:
- Install the power steering pump.
- Install A/C compressor.
