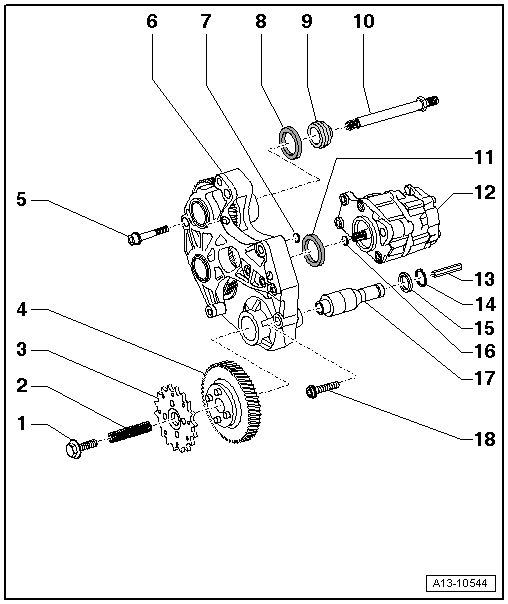

Power Take-Off Component Overview

Power Take-Off Component Overview





1 62 Nm

2 Spring

3 Drive sprocket

• For power take-off

4 Drive spur gear

• For power take-off

5 22 Nm

6 Spur gear unit

7 O-ring

• Replace

8 Seal

• For A/C compressor drive

• Replacing, refer to => [ Power Take-Off Seals ] Service and Repair.

9 Protective dust cap

• For A/C compressor drive

10 Input Shaft

• For air conditioning compressor

• Tighten to 60 Nm.

11 Seal

• For power steering pump drive

• Replacing, refer to => [ Power Take-Off Seals ] Service and Repair.

12 Power-steering pump

13 Input Shaft

• for oil pump

14 Circlip

15 Thrust washer

16 O-ring

• Replace

17 Shaft for drive spur gear

18 Fitting bolt - 22 Nm
