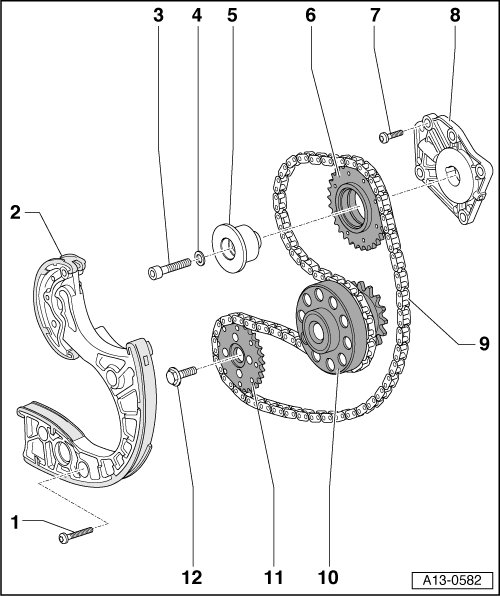

Power Take-Off Chain Component Overview

Power Take-Off Chain Component Overview





1 10 Nm

2 Chain tensioner

• With glide track

3 42 Nm

4 Washer

5 Pivot pin for idler sprocket

6 Idler sprocket for chain for power take-off

7 10 Nm

8 Mounting bracket for idler chain sprocket

9 Chain for power take-off

• Removing and installing, refer to => [ Power Take-Off Chain ] Power Take-Off Drive Chain

10 Crankshaft

11 Drive sprocket for power take-off

12 62 Nm
