Power Take-Off, Component Overview

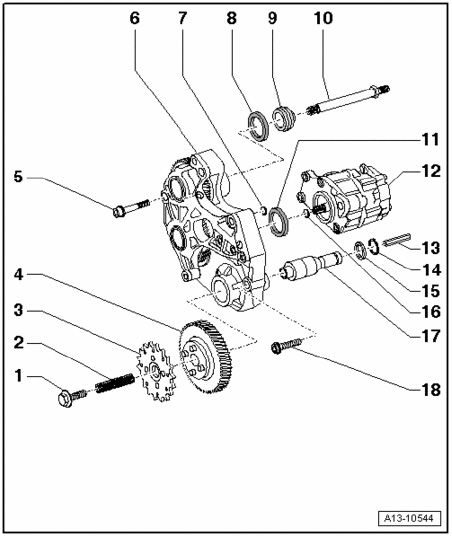

Power take-off, component overview





1 - 62 Nm
2 - Spring
3 - Drive sprocket
^ For power take-off

4 - Drive spur gear
^ For power take-off

5 - 22 Nm
6 - Spur gear unit
7 - O-ring
^ Replace

8 - Seal
^ For A/C compressor drive

9 - Protective dust cap
^ For A/C compressor drive

10 - Input shaft
^ For air conditioning compressor
^ Tighten to 60 Nm

11 - Seal
^ For power steering pump drive

13 - Input shaft
^ For oil pump

14 - Circlip
15 - Thrust washer
16 - O-ring
^ Replace

17 - Shaft for drive spur gear
18 - Bolt - 22 Nm
