Lock Carrier In Service Position, Overview

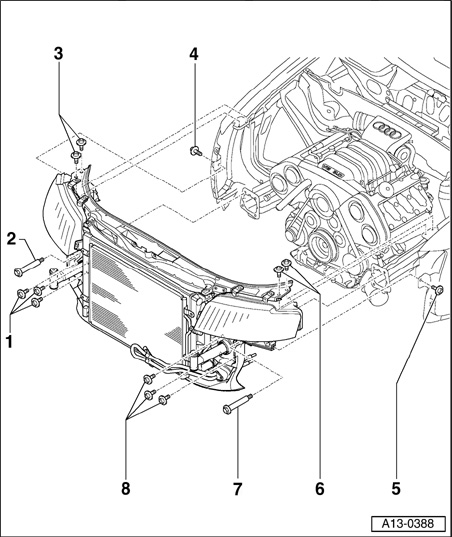

Lock carrier in service position, overview





1 - 40 Nm
2 - Support tool 3369
^ Tighten to 10 Nm

3 - 10 Nm
4 - 10 Nm
5 - 10 Nm
6 - 10 Nm
7 - Support tool 3369
^ Tighten to 10 Nm

8 - 40 Nm
