Guide Piece, Removing and Installing

Guide Piece, Removing and Installing


Up to Vehicle Identification Number (VIN) 400 000

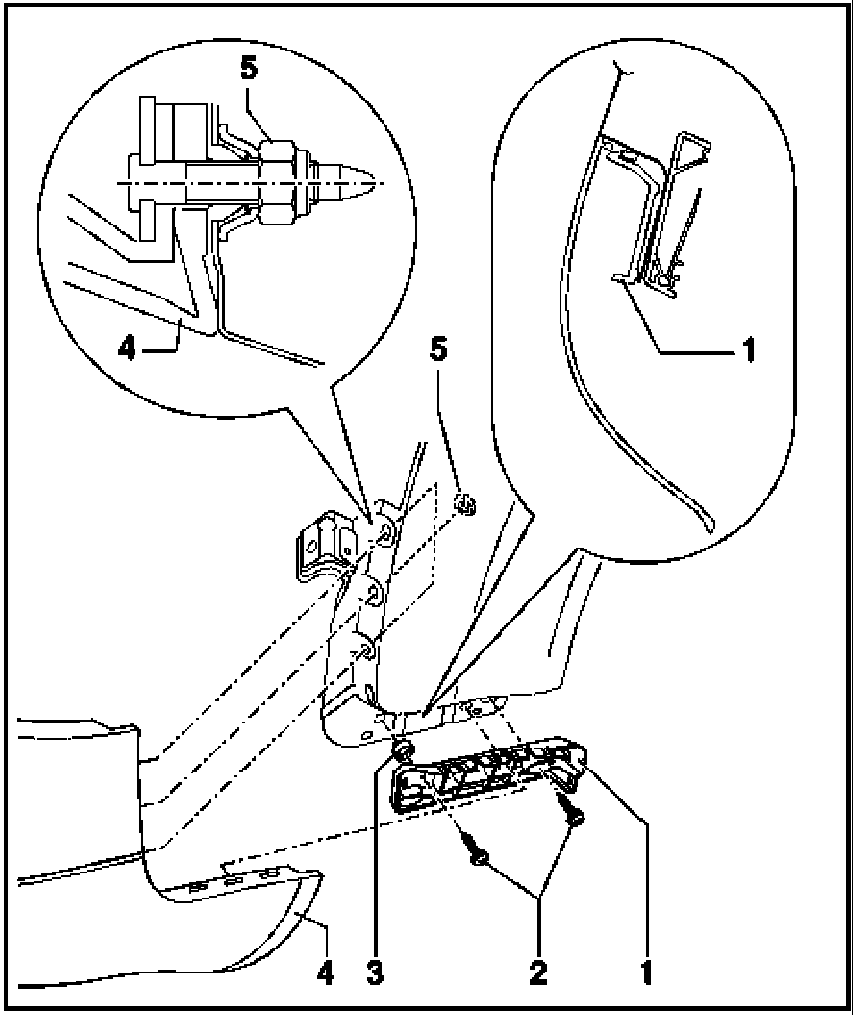

1. Guide Piece

- Bumper removed.

- To remove, remove bolts - 2 -.

2. Bolt

- 1.5 Nm

3. Clip

4. Cover

- Removal, please refer to:

- When installing, cover must engage cleanly in guide piece - 1 -.

5. Special Nut

- 4 Nm.

- Only accessible after loosening front half of wheelhousing liner.
