Selector Mechanism, Through 11.2005

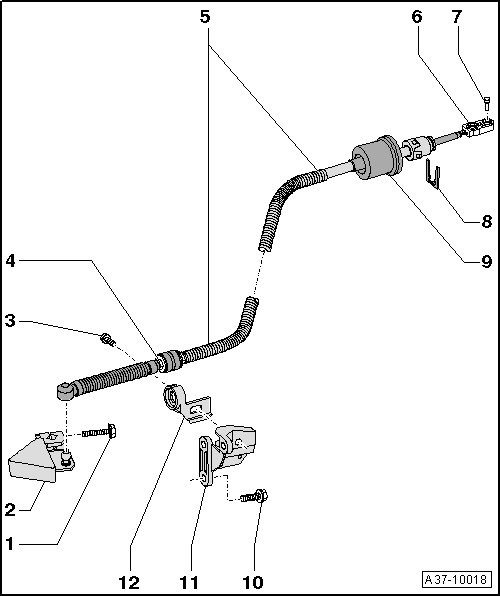

Selector Lever Cable Assembly Overview





1 9 Nm

2 Selector shaft lever

• With mass damper

3 23 Nm

4 Lock nut - 13 Nm

5 Selector lever cable

• Do not bend or kink

• => [ Selector Lever Cable ] Service and Repair

• In case of damaged rubber boot, selector lever cable must be replaced

• Lightly lubricate ball socket with polycarbamide grease (G 052 142 A2) before installing.

• When installing, make sure rubber sleeve on transmission side is not twisted

• => [ Selector Lever Cable, Adjusting ] Selector Lever Cable, Adjusting

6 Selector lever cable locking bolt - 13 Nm

7 Selector lever cable bolt

• To remove selector lever cable, move plastic retaining spring at selector mechanism forward slightly and put bolts upward, only as far as necessary.

8 Retaining clip

• For selector lever cable to selector mechanism function unit

9 Selector lever cable rubber boot

• Check whether selector lever cable rubber boot on lower shift mechanism cover is engaged correctly and properly sealed

10 23 Nm

11 Selector lever cable console

12 Bracket for selector lever cable
