Selector Mechanism, Through 11.2005

Shift Lock Solenoid

Removing

- Place selector lever in position "S".

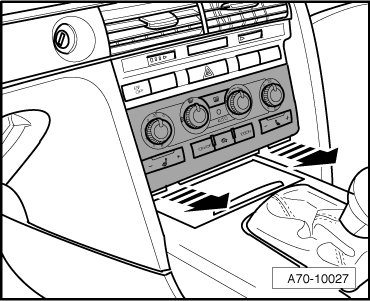

- Grasp at bottom of recesses on Climatronic Control Module (J255) (operation and display unit).





- Remove Climatronic Control Module (J255) (operation and display unit) from installation frame - arrows -.

- Lay Climatronic Control Module (J255) (operation and control module) on a cloth on center console to avoid damaging surface.

- Disconnect electrical connectors in sequence - A to D - by releasing tab - F -.





- Disconnect electrical connector - E -.

- Remove gap cover over ashtray - arrow -.





- Open front ashtray.





- Remove front ashtray insert.

- Remove bolts - 1 - and - 2 -.

- Remove front ashtray housing - 3 - - arrow -.

- If equipped, disconnect electrical connector.

- Disconnect electrical connector - 1 - at Shift Lock Solenoid (N110).





- Release catches - arrow A - and remove Shift Lock Solenoid (N110) forward - arrow B -.

• Shown with selector mechanism removed to provide a better illustration.

Installing

• Selector lever in "S" position.

- Pull manual release lever - arrow - upward.





• When manual release lever is raised, Shift Lock Solenoid (N110) operating lever - 1 - swings into installation position.





- At the same time, position Shift Lock Solenoid (N110) at an angle in guide from above.

- Press Shift Lock Solenoid (N110) into guide until it engages.

• Shift Lock Solenoid (N110) ball head - 2 - must engage in operating lever on selector mechanism.

Further installation is performed in the reverse sequence.

Tightening Specifications
