Battery - Testing/Charging Procedures

Group: 27

Number: 05-01

Date: July 28, 2005

Subject:
Battery Testing, Charging W/Midtronics MCR340V Battery Analyzer or Incharge 940 (INC-940) Charging Station

Model(s):
A6 Sedan 2005 >

Production:

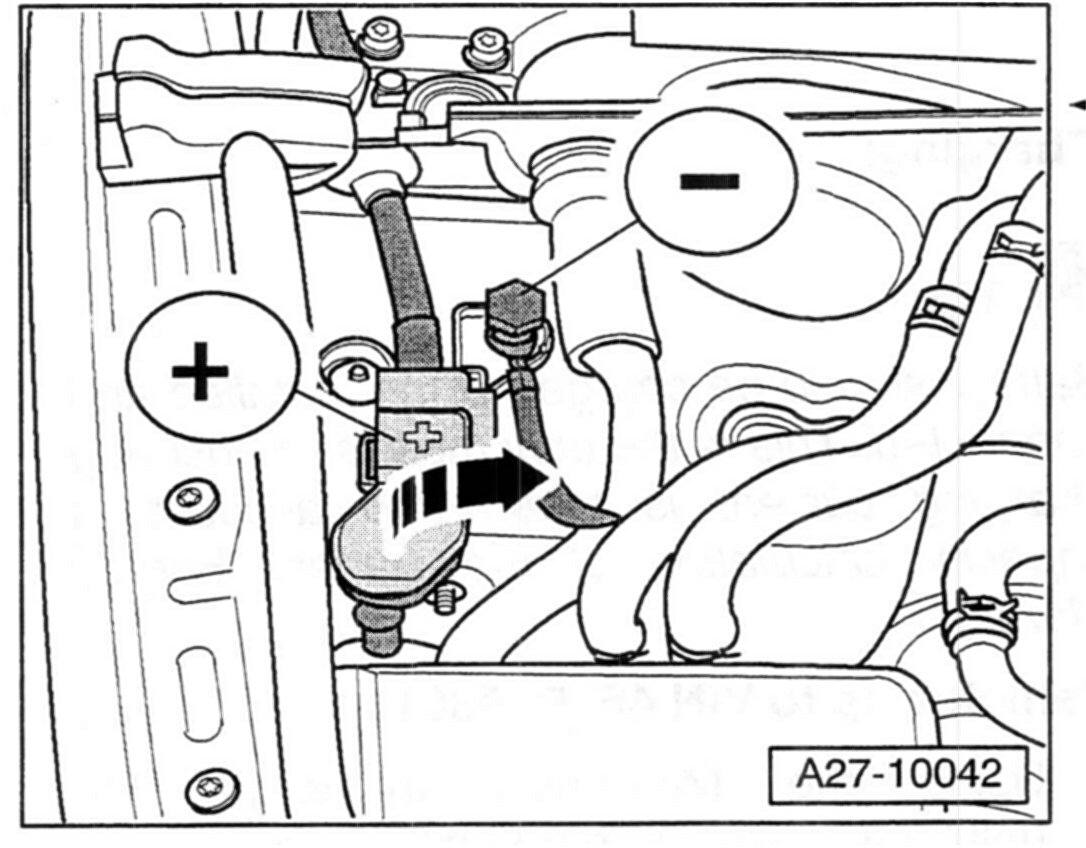

- Beginning with VIN 4F_5N088139, the Battery Energy Manager (BEM) charging stud -arrow- has been eliminated.





- Remote jumper posts for charging are now located under the hood on the passenger side.

Service

Testing:

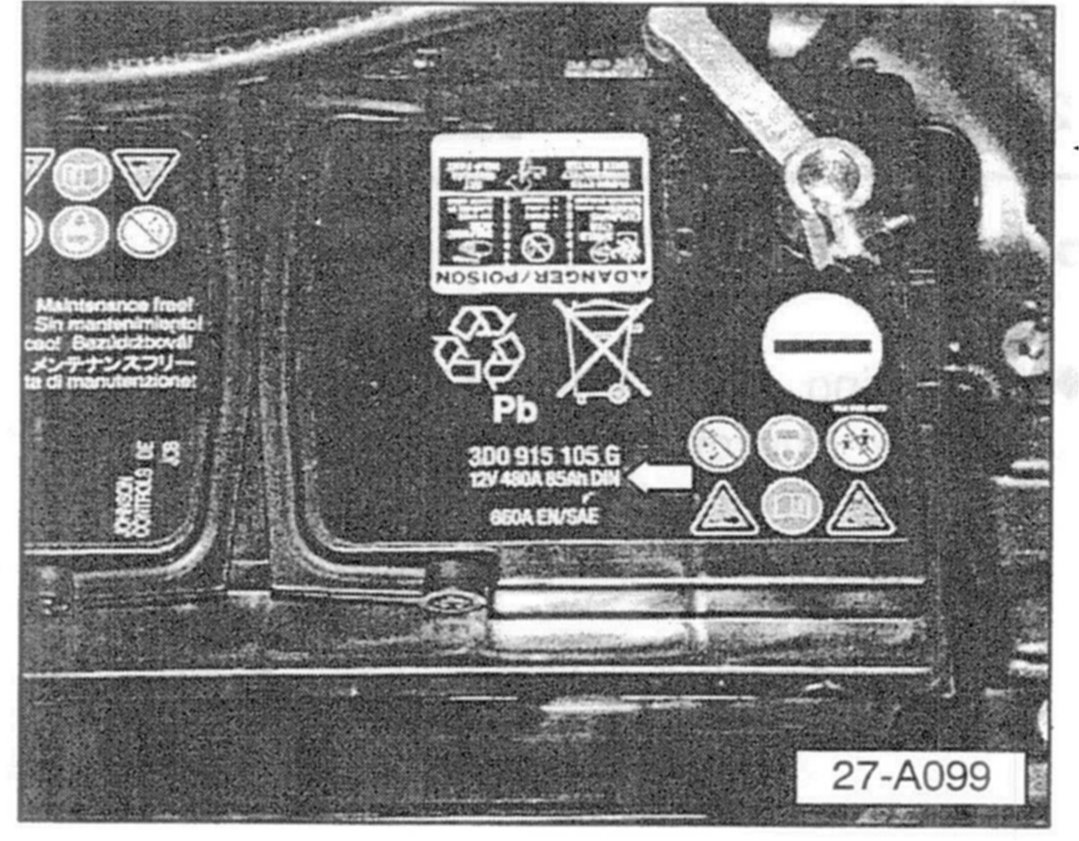

- Testing the battery for all 2005 A6 Sedans may only be performed directly at the battery posts with the Midtronics MCR340V Battery Analyzer. When requested by the tester, enter DIN value as indicated on battery label. -arrow-.

^ The MCR340V Battery Analyzer will not work at remote jumper posts. "System Noise" or an incorrect reading will be displayed because of Analyzer's sensitivity to the Battery Energy Manager's operation.

Tip:

Please refer to Electrical Equipment Group 27 in AESIS for additional information, procedures, and Warnings.

Charging:

Tip:

Battery should be charged when installed and connected. This is the only means of ensuring charging current is taken into account in capacity calculation of the Battery Energy Manager.

Vehicles up to VIN 4F_5N088139:

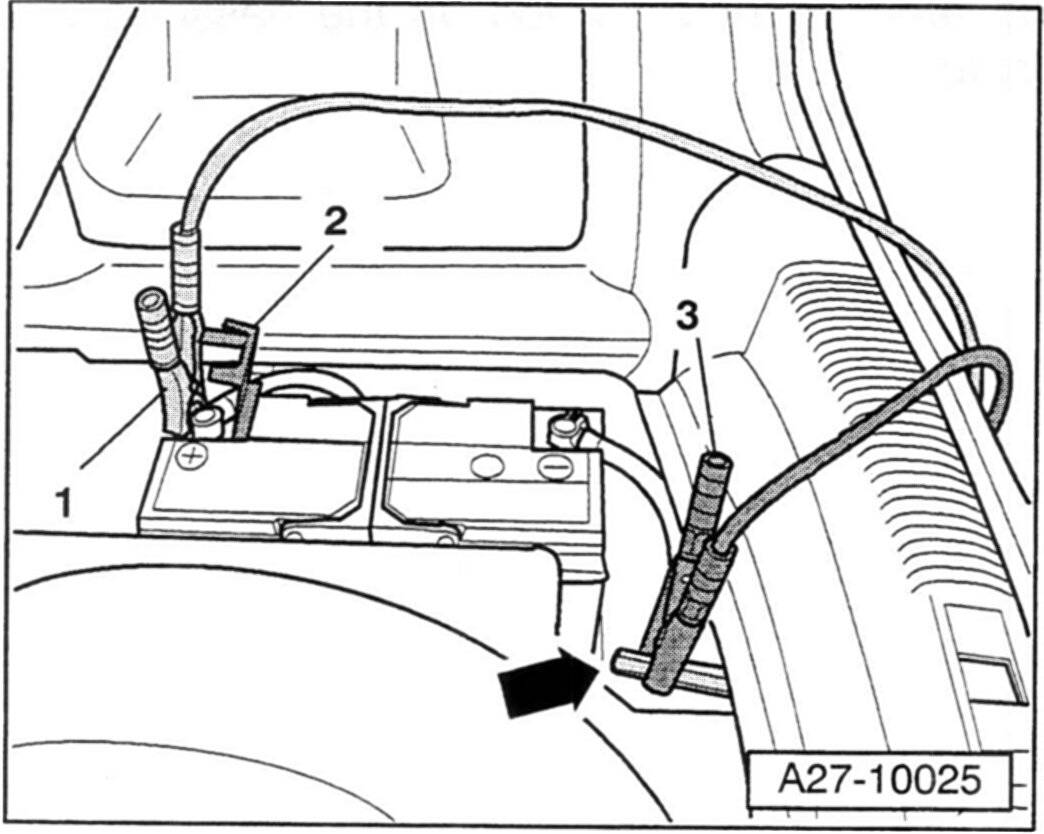

- Using the Midtronics Incharge 940 (INC-940) Battery Charging Station, connect the positive cable -1- to the battery positive post.

- Connect the negative cable -3- to the ground (GND) stud of the Battery Energy Manager.

- When requested by the tester, enter DIN value as indicated on battery label.

Vehicles beginning W/VIN 4F_5N088139:

Tip:

Ensure that the charging station cable clamps do not contact each other as the remote positive and negative jumper posts are located close to one another.

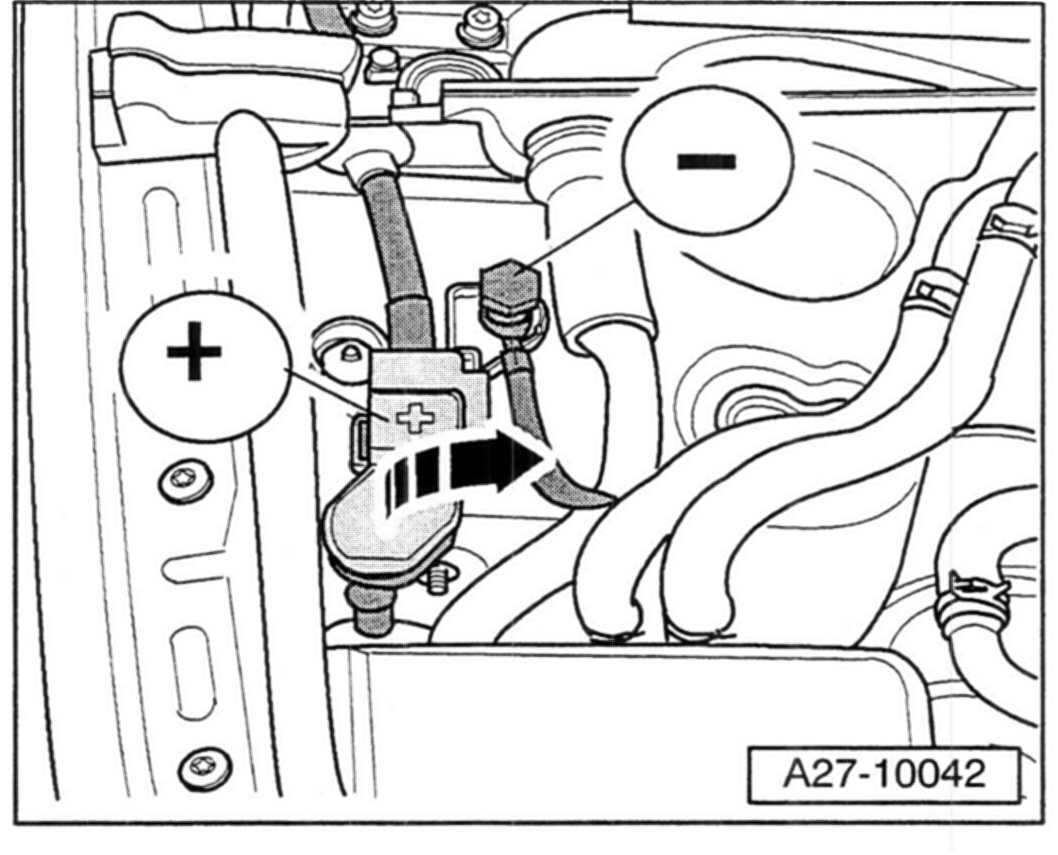

- Using the Midtronics Incharge 940 (INC-940) Battery Charging Station, connect the positive and negative cables to corresponding remote jumper posts under the hood.

- For batteries with DIN value 450, enter DIN value 215 into the charger when requested.

- For batteries with DIN value 520, enter DIN value 235 into the charger when requested.

- This value difference is due to the Battery Energy Manager and added resistance in the system between battery and remote jumper posts.

Tip:

Please refer to Electrical Equipment, Group 27 in AESIS for additional information, procedures, and Warnings.
