Fuse: Locations

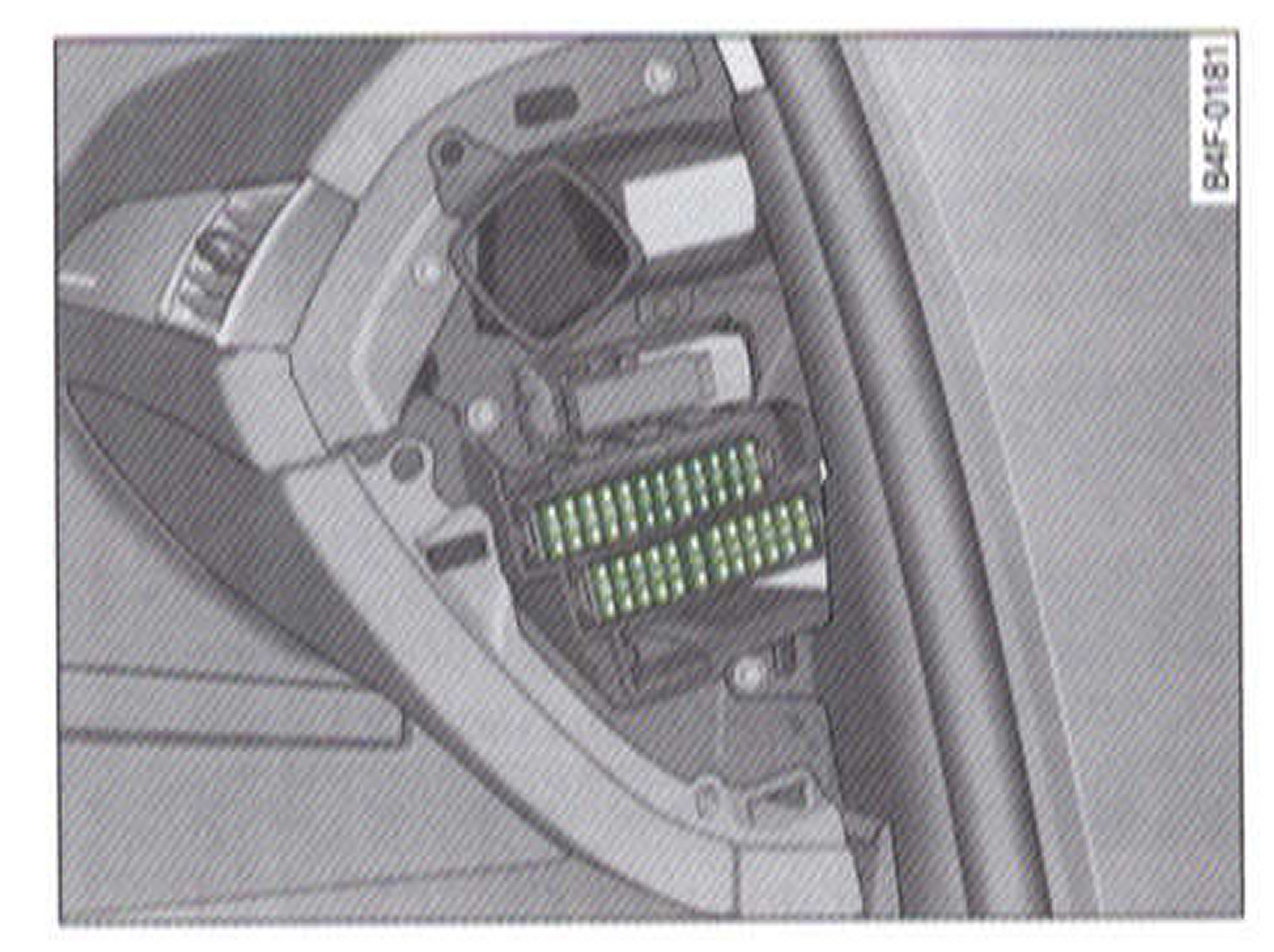

Fuse layout (instrument panel left)

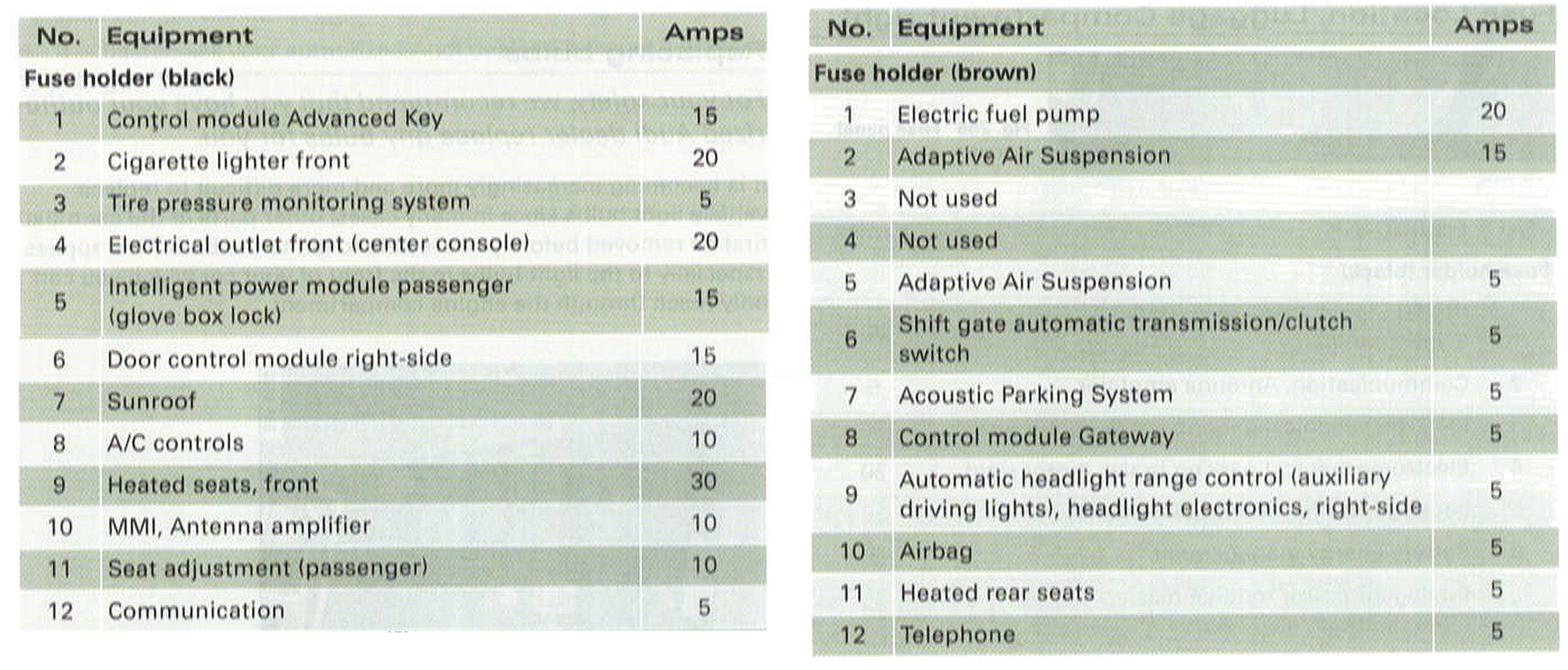

Fuse Details

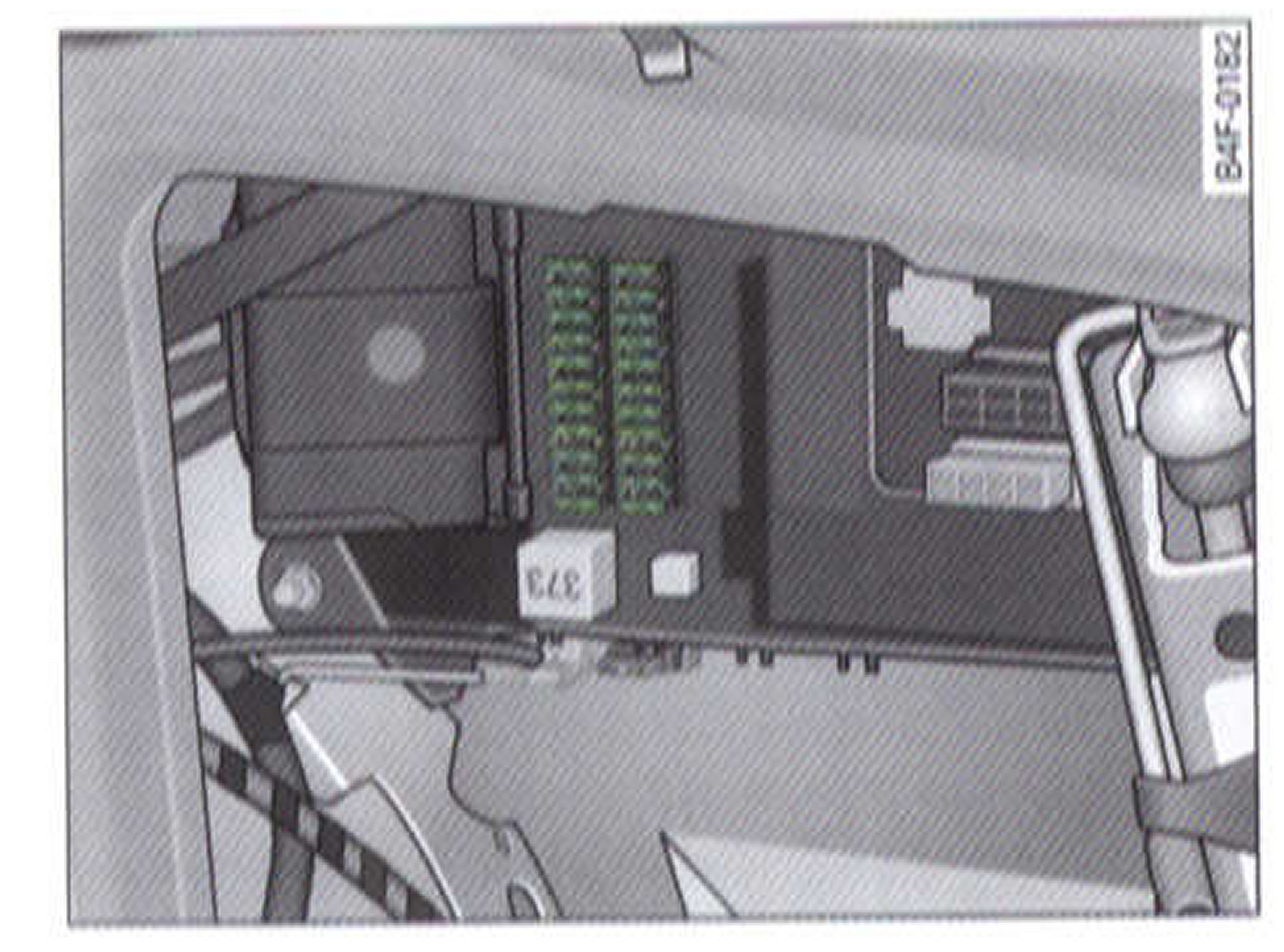

Fuse layout (instrument panel right)

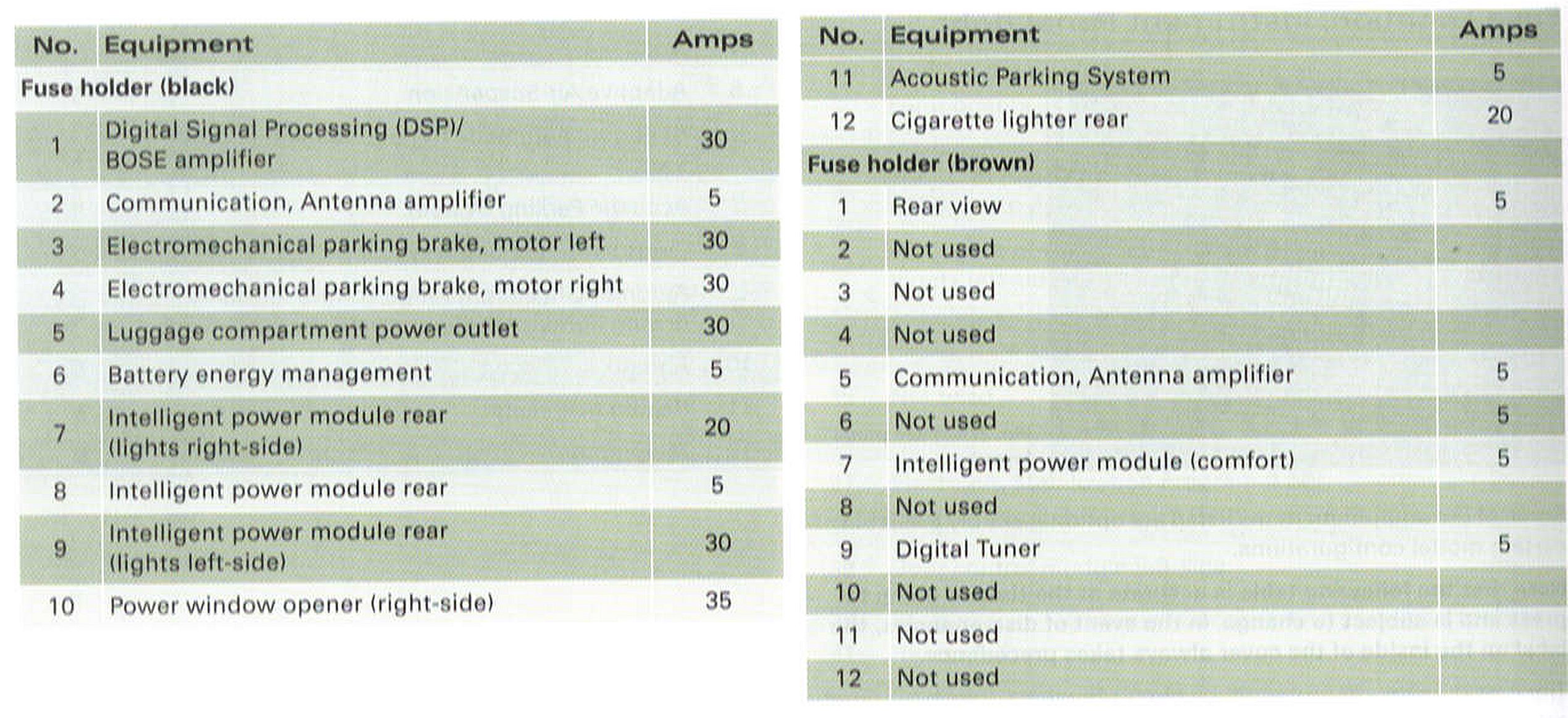

Fuse details

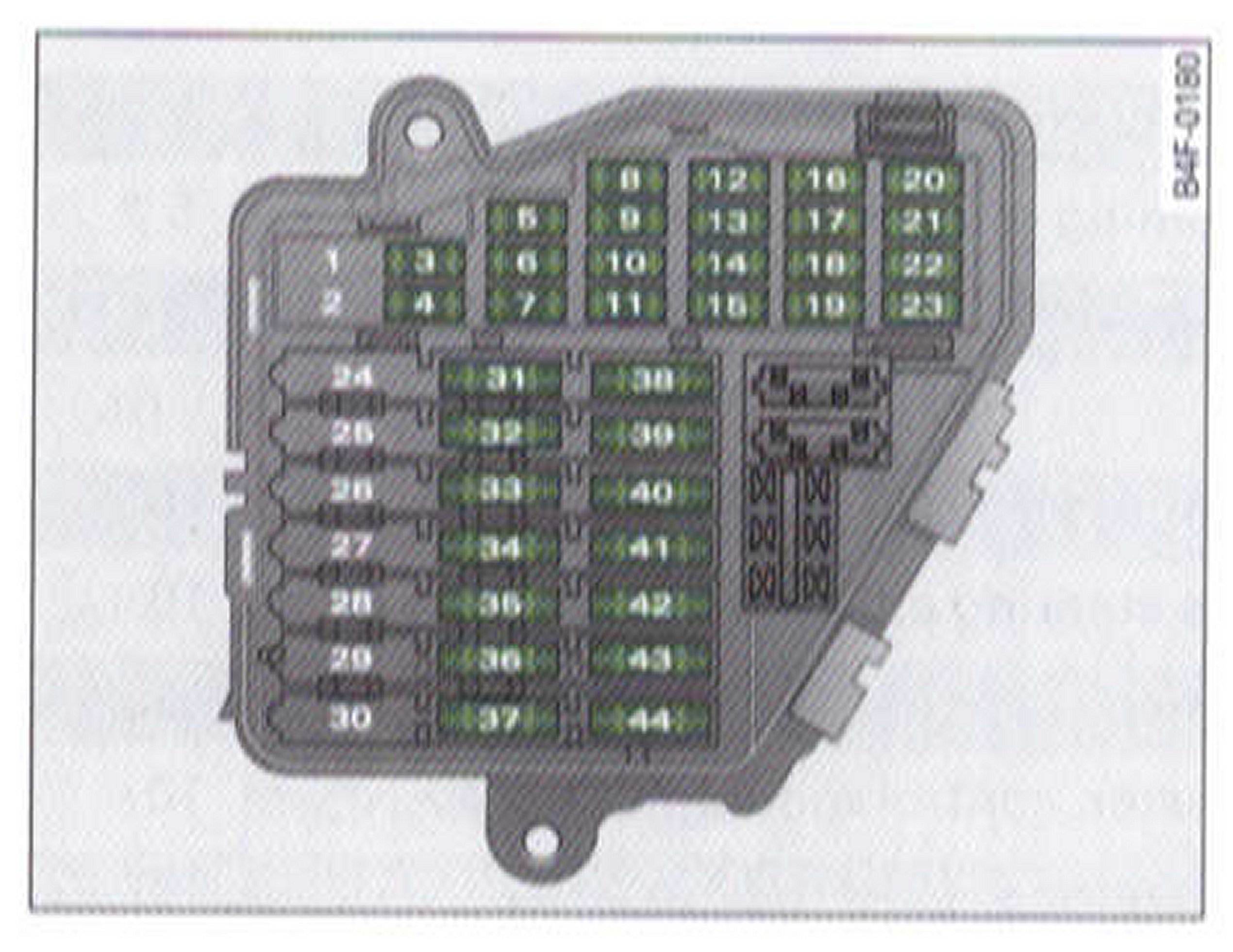

Fuse layout (luggage compartment right)



Fuse details
