Center Rear Belt Guide

Center Rear Belt Guide

Rear center belt guide is only installed on vehicles with fixed rear seat backrest.

Special tools, testers and auxiliary items required

• Trim removal wedge (3409)

Removing





- Remove the rear bench seat. Refer to => [ Bench Seat ] Bench Seat.

- Remove rear center floor assembly anchorage point (belt buckle with right retainer).

- Thread belt webbing - 1 - out of guide clip - 2 - on rear center floor assembly anchorage point (belt buckle with right retainer).

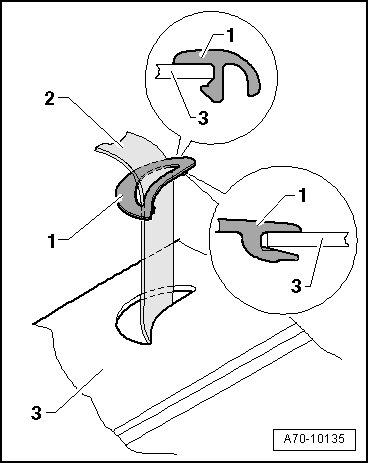

- Unclip belt guide front catches - 1 -.





- To do this, slide (3409) between rear shelf - 3 - and belt guide - 1 -.

- Swing belt guide - 1 - approx. 45° upward.

- Remove belt guide - 1 - from rear shelf - 3 -.

- Thread belt webbing - 2 - out of belt guide - 1 -.

Installation





- Thread belt webbing - 2 - in belt guide - 1 -.

Ensure belt webbing is not twisted.

- Engage back of belt guide - 1 - first in rear shelf - 3 -.

- Clip belt guide catches - 1 - onto rear shelf - 3 -.

- Install rear center floor assembly anchorage point (belt buckle with right retainer).

Further installation is performed in the reverse order of removal.
