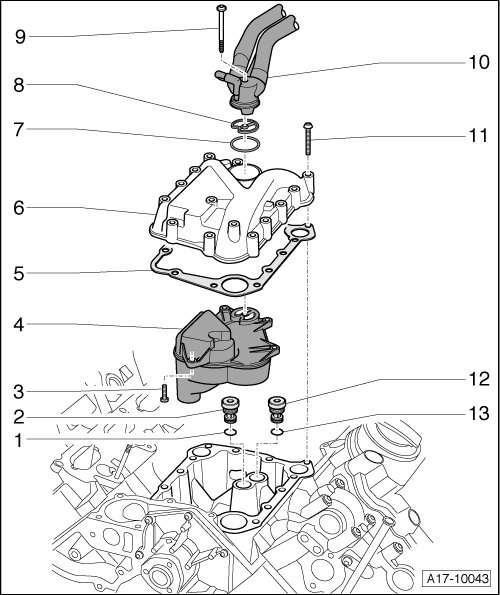

Oil Check Valves and Oil Separator Assembly Overview

Oil Check Valves and Oil Separator Assembly Overview





1 O-ring

• Replace

2 Oil check valve - 20 Nm

• For oil supply to right cylinder head

3 9 Nm

4 Oil separator

• Screwed into cover => [ (Item 6) Cover ] from below

5 Gasket

• Replace

6 Cover

• With connection for crankshaft housing ventilation

• To remove, remove upper section of intake manifold.

7 O-ring

• Replace

8 Gasket

• Replace

9 6 Nm

10 Crankcase ventilation hoses

CAUTION!
On US vehicles, crankcase ventilation must not be removed.

11 9 Nm

12 Oil check valve - 20 Nm

• For oil supply to left cylinder head

13 O-ring

• Replace
