Splash Guard: Service and Repair

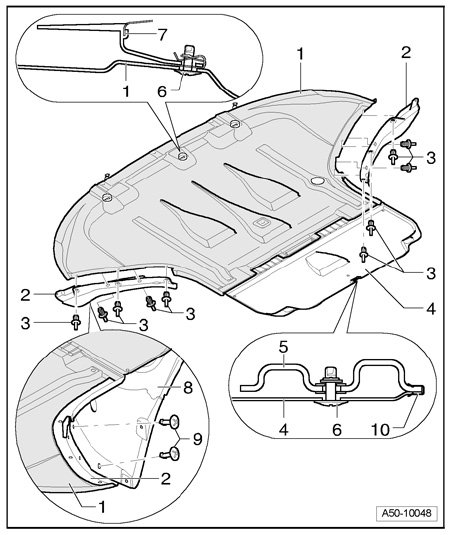

Noise Insulation Panel-Assembly Overview







1 - Front noise insulation
- Remove two end pins on each wheel housing liner.
- To remove, remove front and rear quick release screws.
- Remove noise insulation rearward under bumper cover.
- Remove noise insulation forward with wheel spoilers.

2 - Wheel spoiler
- To remove, disengage expanding clip by pressing clamping pins.

3 - Clamping pin
- 5 pieces per wheel spoiler

4 - Noise insulation panel rear
- Removal

5 - Subframe
6 - Quick release screw
- For lock carrier service position, remove quick release screws only on lock carrier.
- Qty. 3

7 - Lock carrier with attachments
8 - Wheel housing liner
9 - End pins
- When removing, remove front noise insulation.
- 2 times left and right on each wheelhousing liner.

10 - Retaining clamp

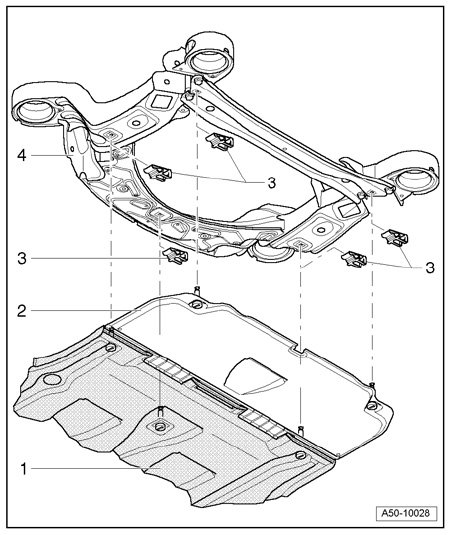

Rear noise insulation







1 - Front noise insulation
2 - Rear noise insulation
- To remove, remove rear quick release screws on front noise insulation.
- Remove rear quick release screws on rear noise insulation and remove rearward.

3 - Spring nut
- Inserted sideways in subframe.

4 - Subframe
