Procedures

Positioning Lock Carrier In Service Position

Special tools, testers and auxiliary items required







- Service position front end 3369

Removing

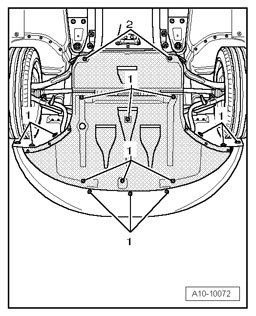

- Loosen quick release screws - 1 - and - 2 - and remove noise insulation.
- Remove left and right front wheel housings
- Remove front bumper
- Remove left and right headlights.







- Unscrew bolts on lower left and right lock carrier.







- Remove hood seal on both fenders.
- Unscrew 2 screws - arrow - on upper left and right lock carrier.
- Turn special tool for Service Position Front End 3369 left and right in holes for lock carrier screws to unscrew the respective screws.







- Unthread remaining bolts -arrows- at left and right.
- Push lock carrier forward carefully.

Installing
Installation is reverse of removal, noting the following:
- Install lock carrier with attachments.







- Allow torque arm stop to make contact with rubber buffer with own weight and tighten bolts - arrow -.
- Install headlights.
- Install front bumper
- Check headlight adjustment 4 F.

Tightening torque

Component Nm
Torque arm mounting on lock carrier 40
